Urea tube installation specification

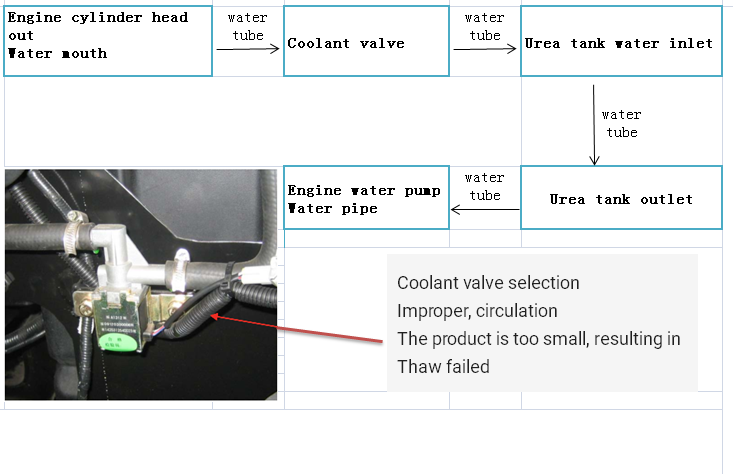

Installation specification-cooling (heating) water pipe (air assist system)

Installation Specification-Urea Pipeline

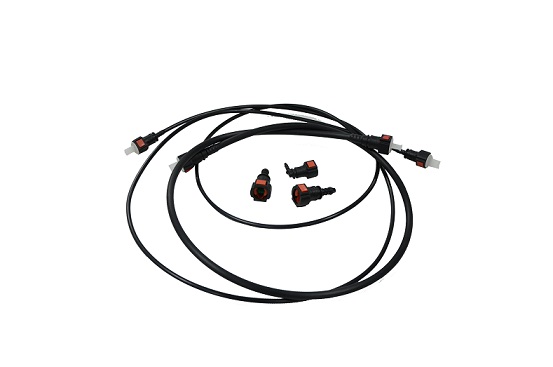

Urea pipes installation specification

Incorrect installation of the urea pipeline will cause the system to fail to work

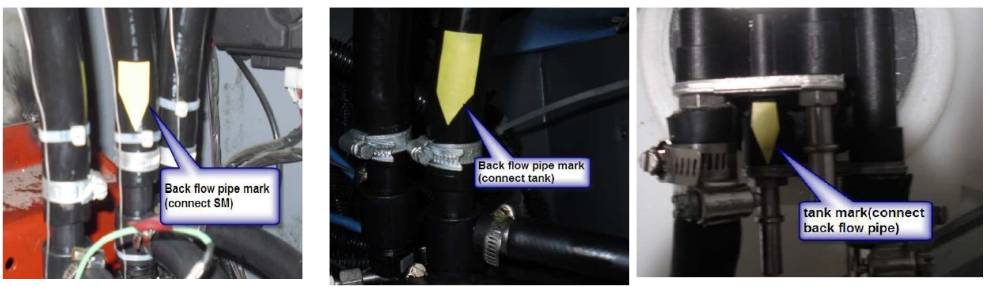

In order to prevent installation errors, both ends of the return pipe and the joints of the urea tank should be
Set up obvious signs.

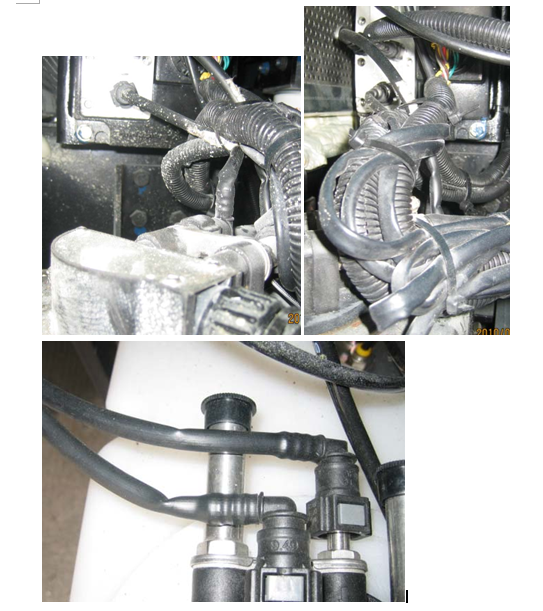

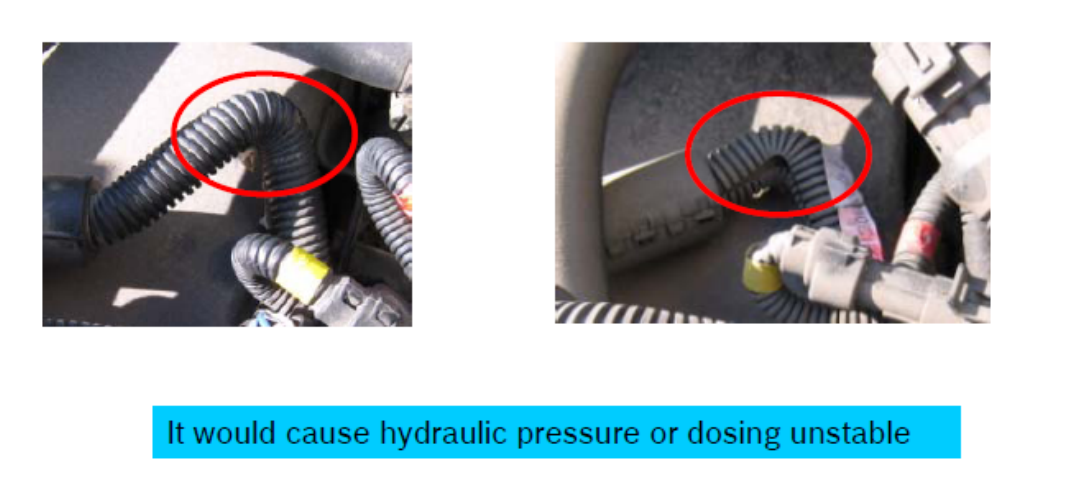

The urea tube is bent and deformed

Urea tube bending

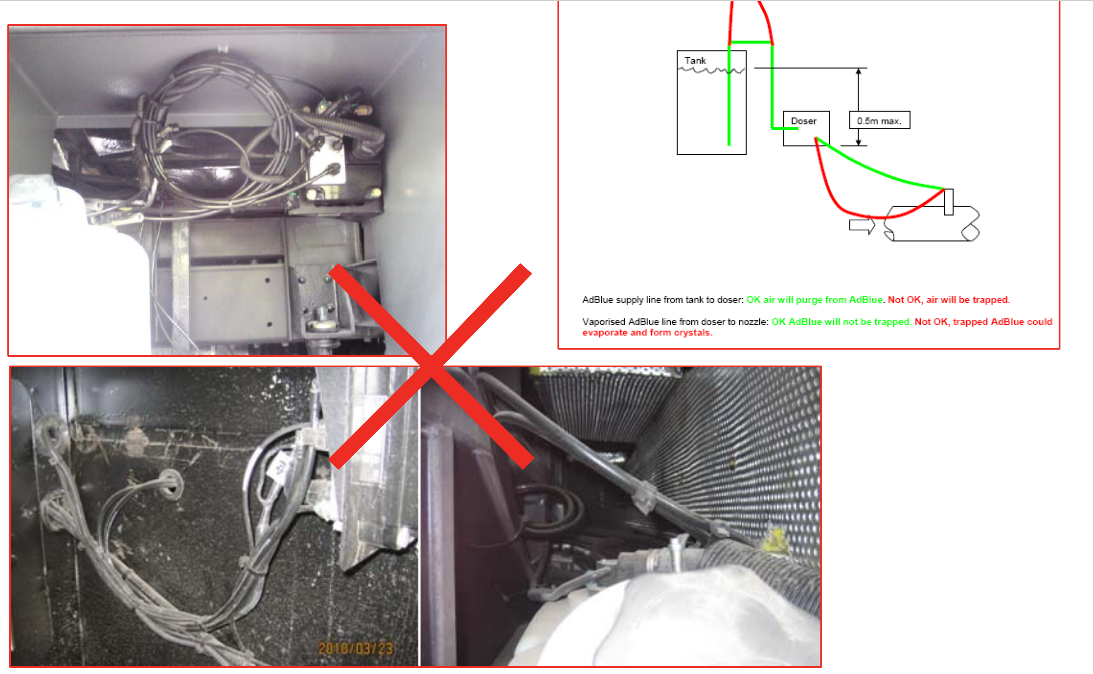

Urea injection pipeline installation

The urea injection pipeline needs a section of siphon to ensure the most
The low point is lower than the urea injection unit.

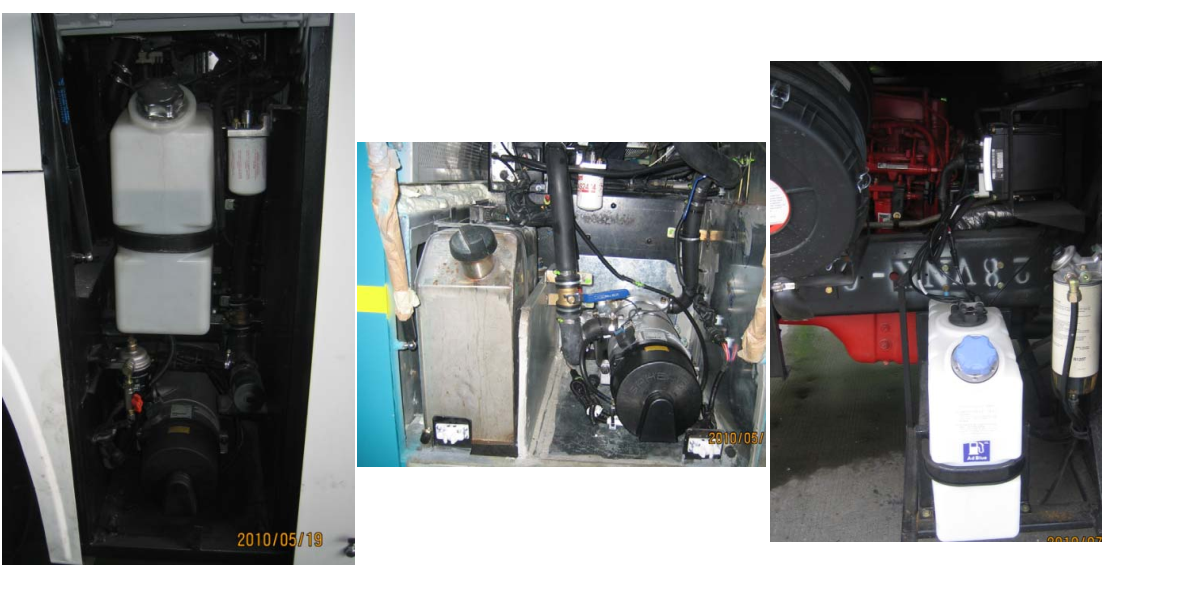

The urea tank and the urea pump are close to the heat source, causing the temperature to be too high
