Sensor Installation

Sensor Installation

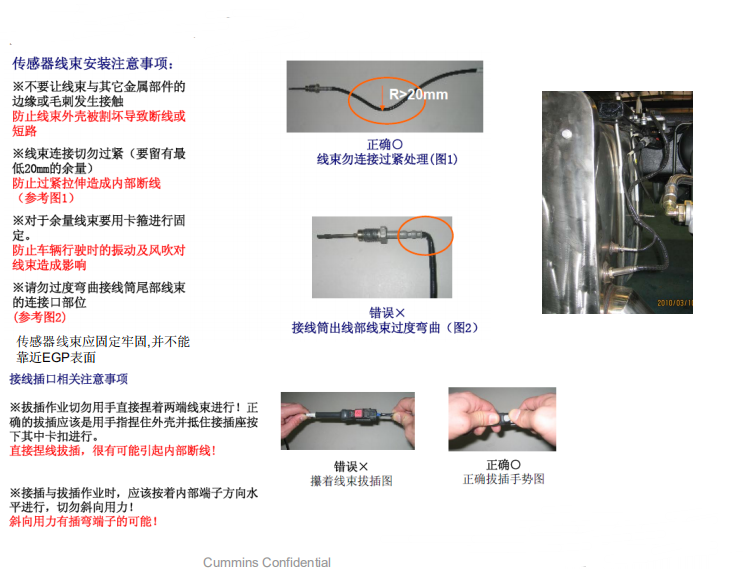

Sensor plugs are different and cannot be forced

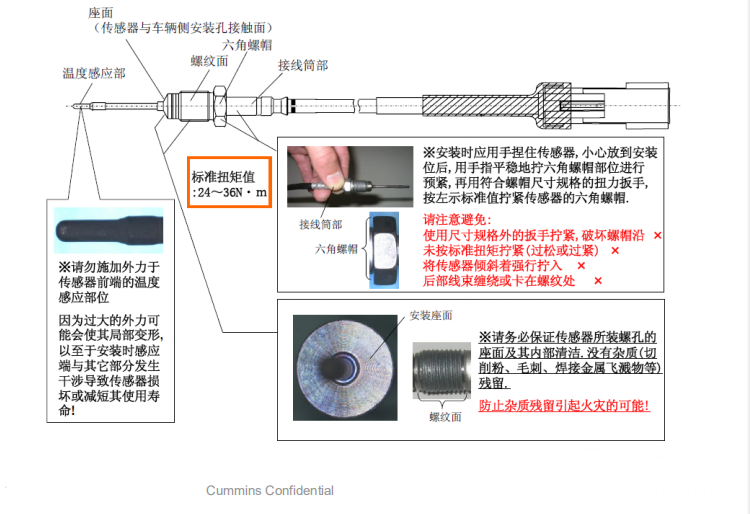

1.Do not apply external force to the temperature sensor at the front of the sensor

2.During installation, hold the sensor by hand. After placing it carefully at the installation position, pretighten the hexagon nut with fingers smoothly. Then, use a torque wrench that meets the size and specifications of the nut, tighten the hexagon nut of the sensor according to the standard value shown on the left

3.Make sure that the seat surface and the interior of the screw hole installed in the sensor are clean and free of impurities
