SCR System Installation Specification – Cleanliness

It’s important to ensure cleanliness of parts before installation.

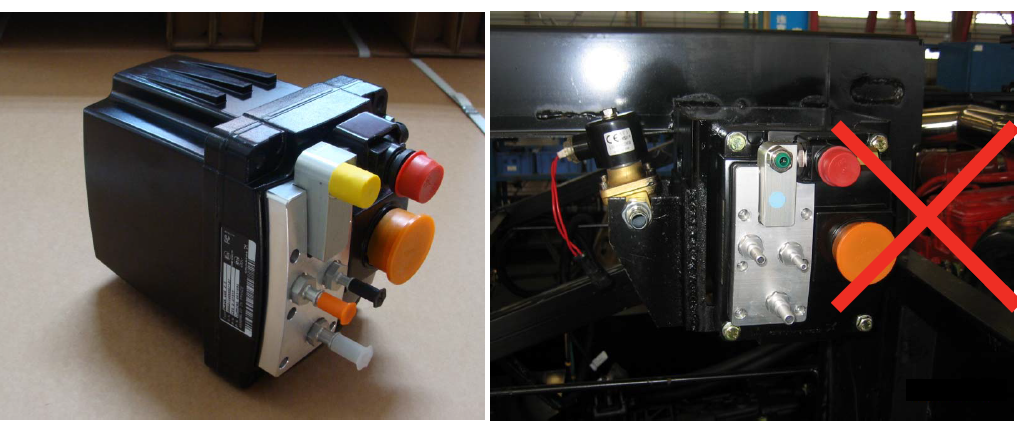

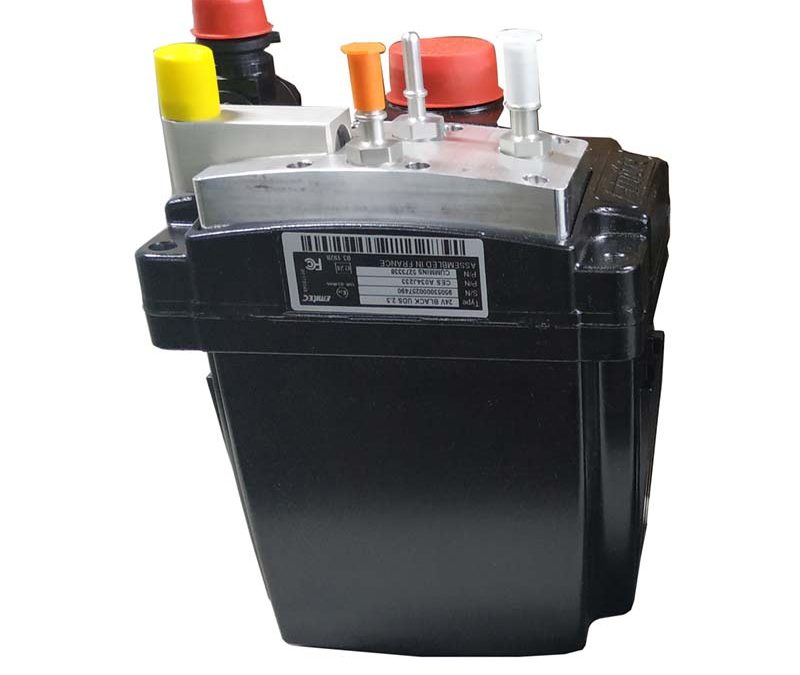

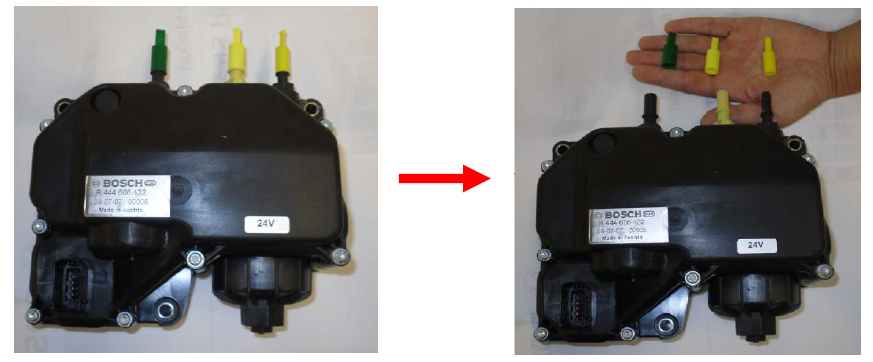

• Supply module cleanness

SM is sensitive to contamination. Keep SM clean.

All protection caps must only be removed shortly before assembly.

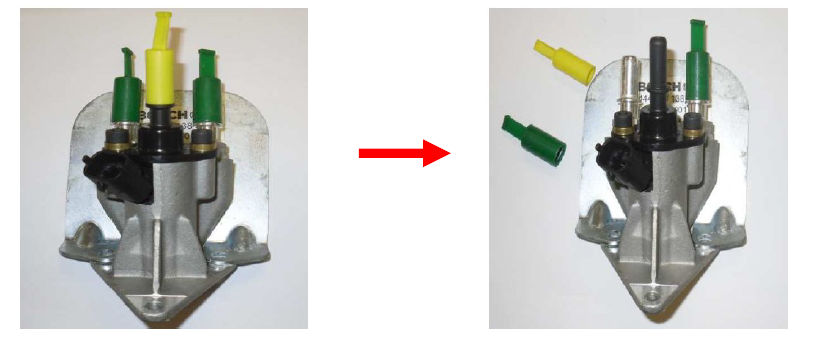

• Dosing Module cleanness

DM is sensitive to contamination. Keep DM clean.

All protection caps must only be removed shortly before assembly.

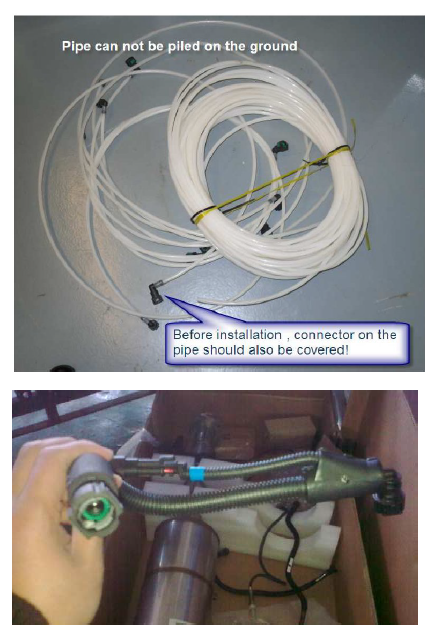

• AdBlue pipe cleanness

Put AdBlue pipe in designation area where escape from contaminated,and package well.

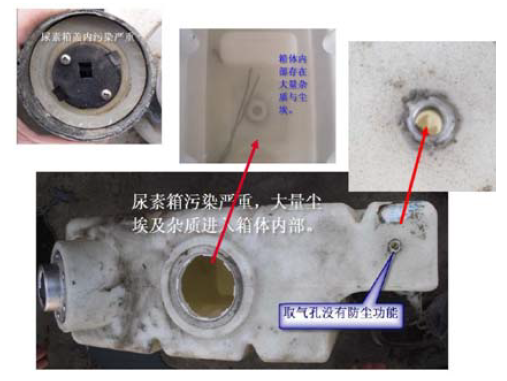

• AdBlue tank cleanness

Contaminate AdBlue block even damage prefiter, direct lead to system can’t normally running.

AdBlue tank package robusness, abd escape from contamination area when refill AdBlue.

Urea tank should be kept away from heat source.
