The Principle of Selective Catalytic Reduction （SCR) system

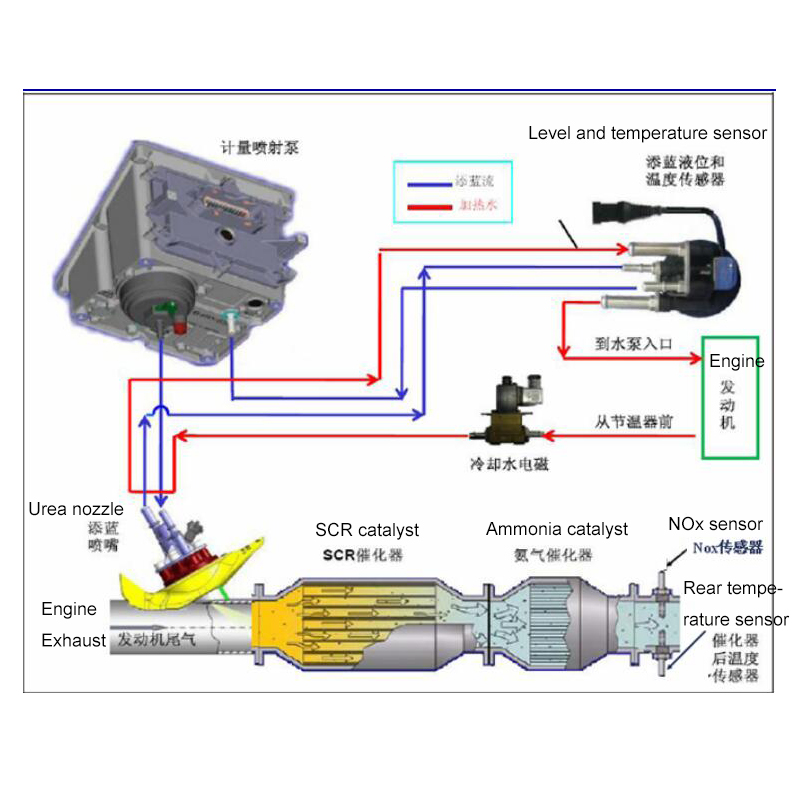

SCR-system-pipeline
We would like to make a brief introduction of the Principle of SCR system.
SCR is the abbreviation of Selective Catalytic Reduction.
The purpose of reduction is to reduce NOx to N2 and H2O through the reaction of NH3(reducing agent ) and NOx.
NO + NO2 + 2NH3->2N2+ 3H2O
4NO +O2 + 4NH3 -> 4N2+ 6H2O
2NO2 + O2 + 4NH3-> 3N2 + 6H2O
The reducing agent currently used in SCR system is 32.5% urea solution. After adding H2O to urea NH2CONH2, it decomposes into NH3 and CO2 at high temperature.
NH2CONH2 + H2O -> 2 NH3 + CO2

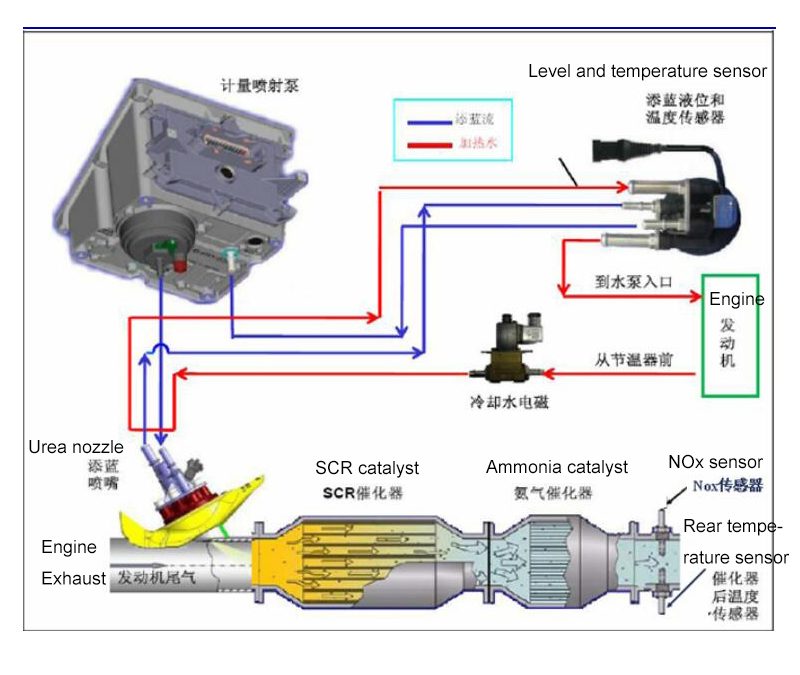

Pipeline layout
SCR-system-pipeline
