Replacement cycle and replacement method of main filter element of metering jet pump

Replacement cycle and replacement method of main filter element of metering jet pump-Sukorun

 （Replacement frequency: every 180,000 kilometers or once a year）

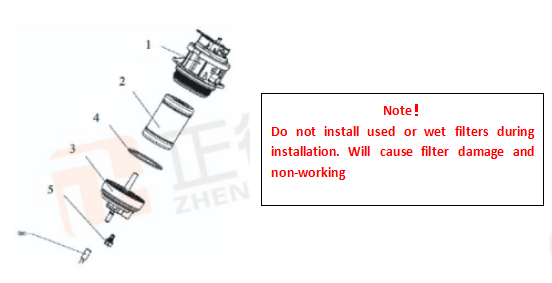

Main filter （F00B H40 047）:

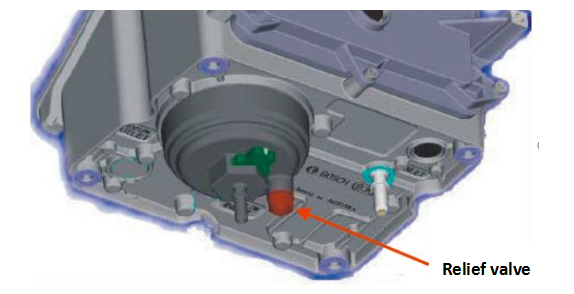

  • The overflow valve (1453 465 047) can be opened after turning left for 2 turns. Please empty the main filter.

The installation rotation torque of the relief valve is 2 + 0.5 Nm

  • The filter cover (F00B H20 057) is left-turned to open and can be taken out
  • The filter (1457 436 002) rotates to the left of the filter cover.
  • O-ring seal (F00B H60 048) The seal ring must be replaced every time the filter is replaced. Grease can be applied to facilitate installation.
  • When installing the filter, rotate it by hand until resistance is felt and then rotate it 1/4 turn.
  • The filter cover is installed by rotating, the torque is 20 Nm + 0.5 Nm) Please pay attentionto the position of the overflow valve when installing!
