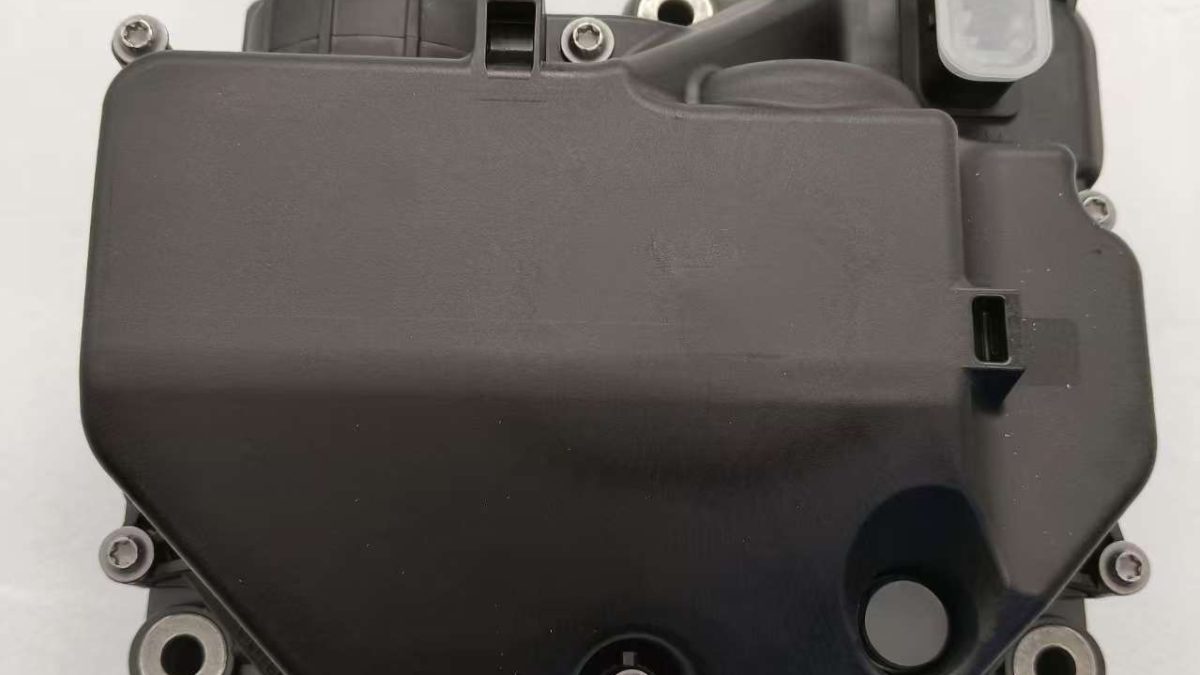

Bosch 2.2 Urea Pump Maintenance Guide

1、 Check for crystal blockage
The crystallization blockage of Bosch 2.2 urea pump may cause the pump to not absorb liquid, thus unable to establish pressure. It is necessary to clean or replace the affected components to ensure the normal operation of the pump.
2、 Check the sealing ring
The sealing ring at the connection between the inlet joint and the pump needs to be checked to ensure that it is not damaged or missing, in order to prevent air leakage.
3、 Check the unidirectional membrane
If the one-way diaphragm under the pump motor diaphragm is damaged or missing, it will cause air leakage in the inlet channel, affecting suction and pressure building. Need to check and replace in a timely manner.
4、 Check the fluid circuit module
The sealing rings of each interface in the bottom liquid circuit module of the pump need to be checked to ensure that all interfaces are sealed properly and prevent air leakage.
5、 Check the urea filter element
If the urea filter is clogged, it will cause insufficient urea flow and affect the establishment of urea pressure. Need to check and replace in a timely manner.
6、 Check the return valve and urea pressure sensor
If there is a problem with the return valve or urea pressure sensor, it is possible to consider using spare parts for replacement.
7、 Check the nozzle and spray pipeline
The nozzle and injection pipeline need to be checked to ensure that the nozzle is not leaking and the injection pipeline is not leaking, in order to ensure the stability of urea pressure.
It should be noted that the above steps are for reference only, and the specific repair process may vary depending on the vehicle model and specific situation. When carrying out repairs, please be sure to follow the relevant safety operating procedures and seek the help of professional technicians if necessary.
If the vent hole of the urea tank is blocked, it may cause vacuum pumping during pump pressure building, making it impossible for the pump to suck liquid. In this case, the inlet filter should be replaced first, and then the inlet pipeline and urea tank should be flushed.
Repairing the Bosch 2.2 urea pump requires professional skills and experience. If you do not have the relevant skills, please seek the help of a professional technician.
