VDO Cockpit International Tachometer 333-035-010 80mm 12-24V

12-24V Tachometer 333-035-010 3.000 RPM 80mm for VDO

Technical Specification:

– Part No.: 333 035 010
– Measuring Range: 0–3000 RPM (×100)
Operating Voltage: 11–30V DC, compatible with 12V / 24V systems
– Mounting Diameter: 80 mm
– Signal Input: Alternator W terminal or ignition signal
– Front Panel Protection: IP65
– Operating Temperature: -20℃ ~ +70℃

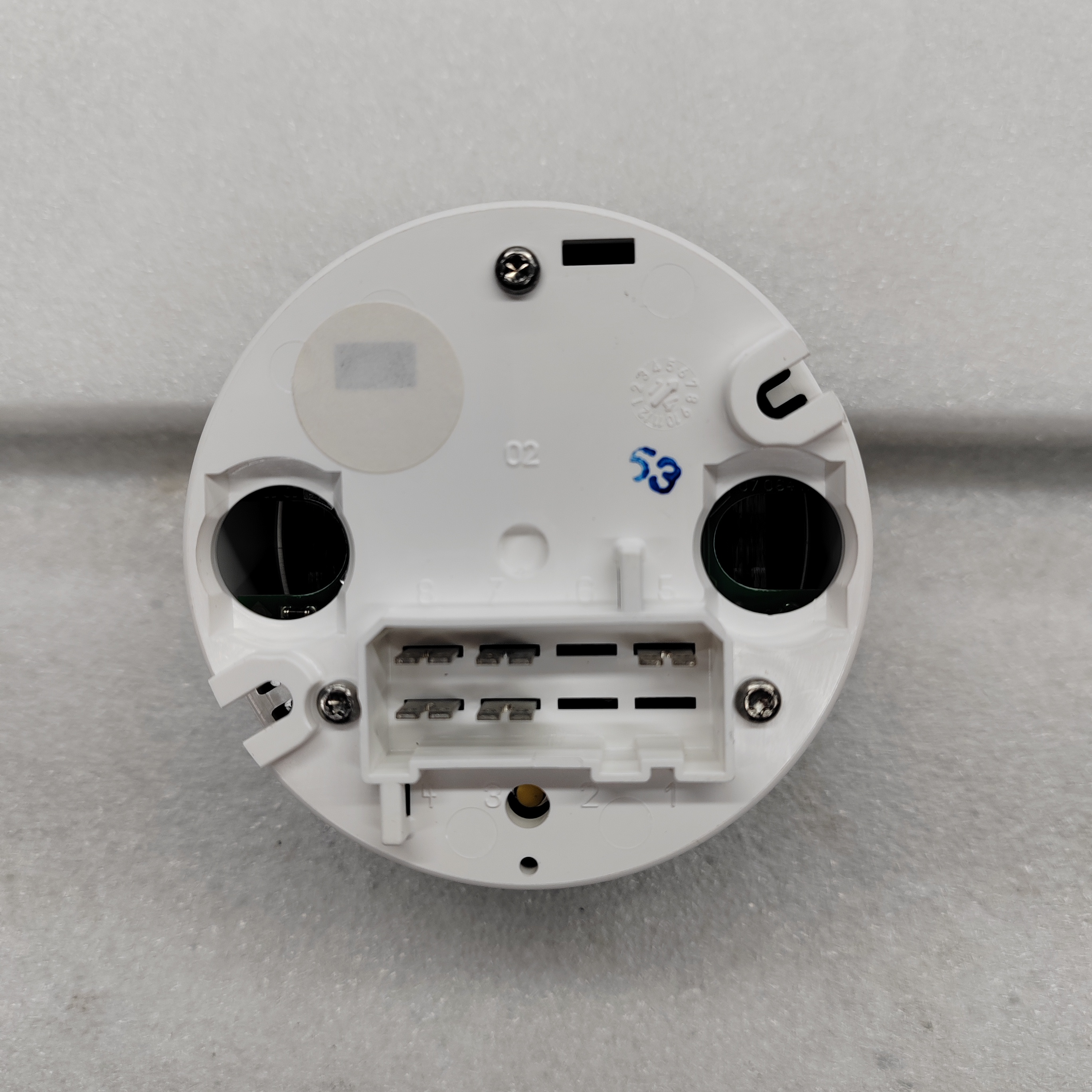

– Connector: 8-pin AMP male connector
– Built-in backlight for clear reading in dark environments
– Weight: approx. 0.5 kg

Product Purpose:

This VDO tachometer is used to monitor real-time engine rotational speed (RPM). It also integrates an engine hour meter to record cumulative working hours of the engine. Widely applied for diesel engines on generators, construction machinery, buses, trucks and marine equipment, helping operators avoid engine over-speed and schedule maintenance.

Detailed pictures:

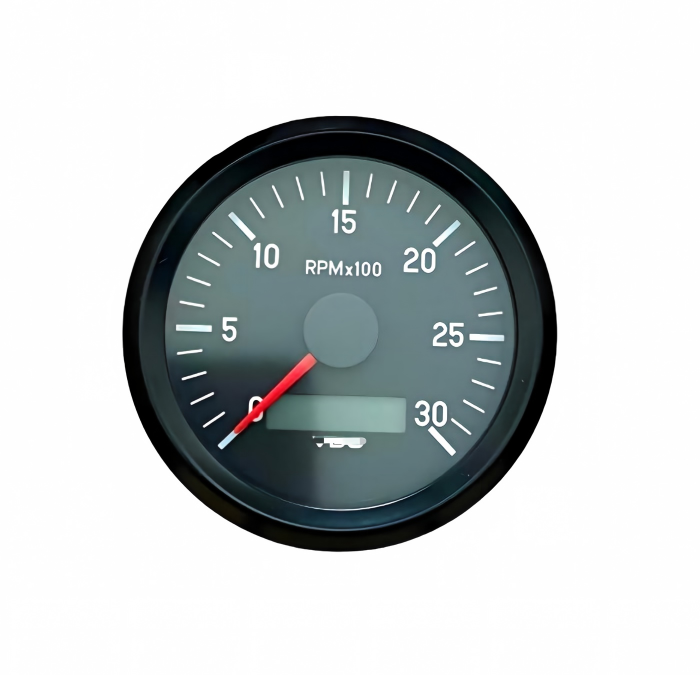

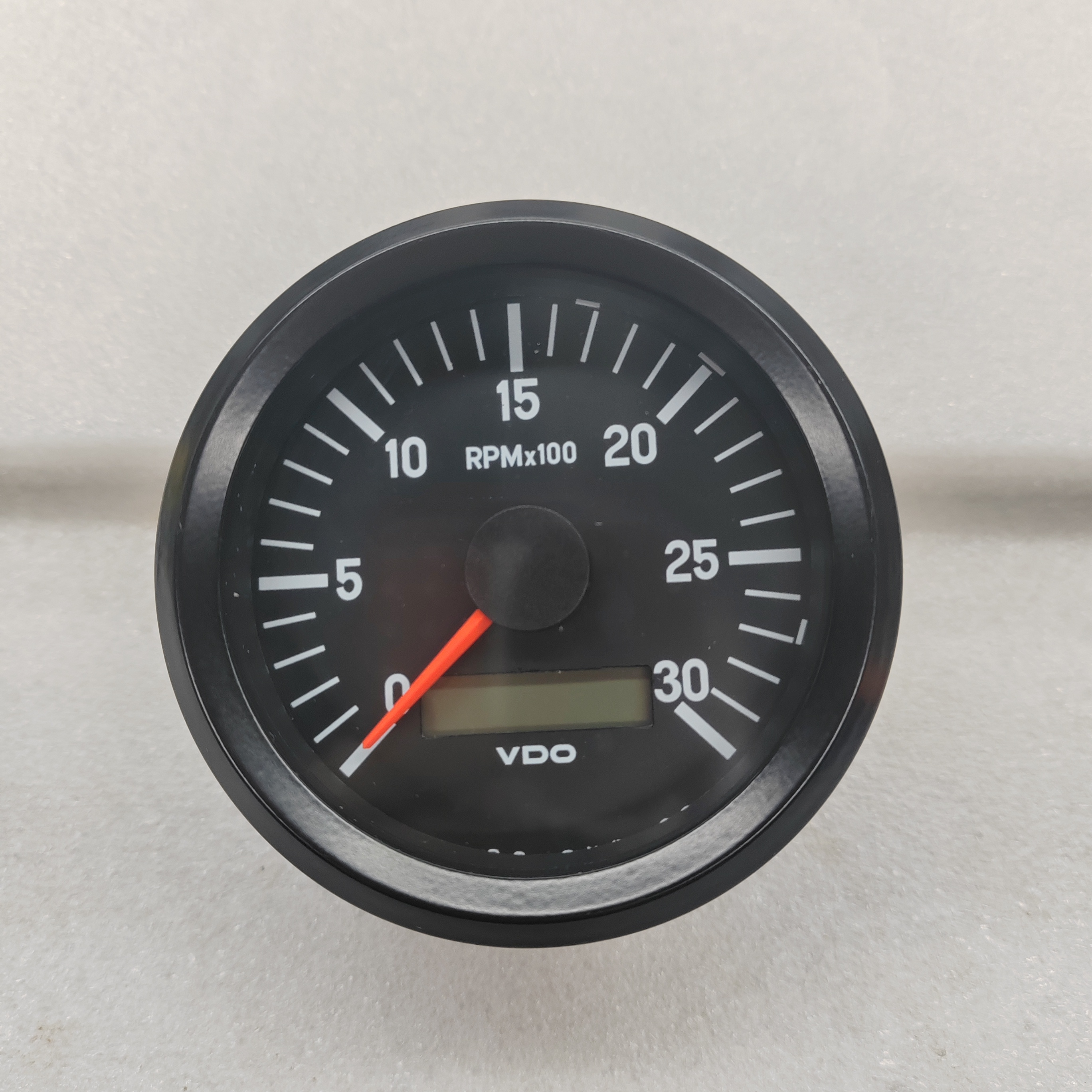

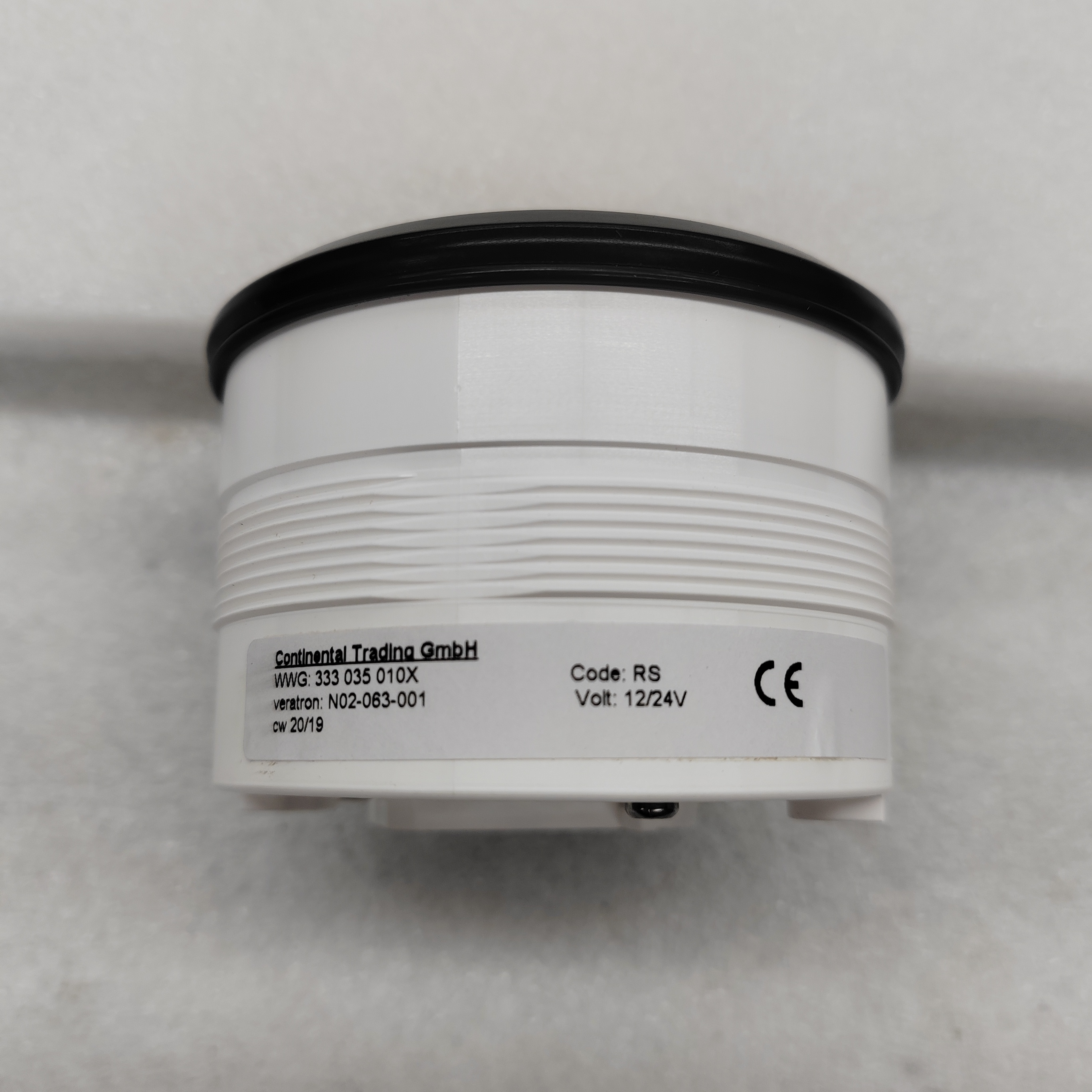

VDO Cockpit International Tachometer 333-035-010 80mm 12-24V

VDO is a well‑known brand for vehicle instruments, widely used in trucks, construction machinery and marine equipment. These gauges adopt reliable sensor signal processing technology to accurately display speed, engine RPM, oil pressure, coolant temperature and fuel level.

With robust housing and anti‑vibration design, VDO instruments perform stably under harsh working conditions. Clear dial markings and high‑contrast displays allow drivers to read data easily. They feature standard connectors for simple installation and good compatibility with many engine systems.

Our VDO gauges are original or high‑quality replacement parts, ideal for equipment maintenance and retrofit.
