Clutch Servo 9700516210 Clutch Slave Cylinder Genuine Wabco Quality

Clutch Servo 9700516210 Clutch Slave Cylinder Genuine Wabco Quality

Detailed Pictures:

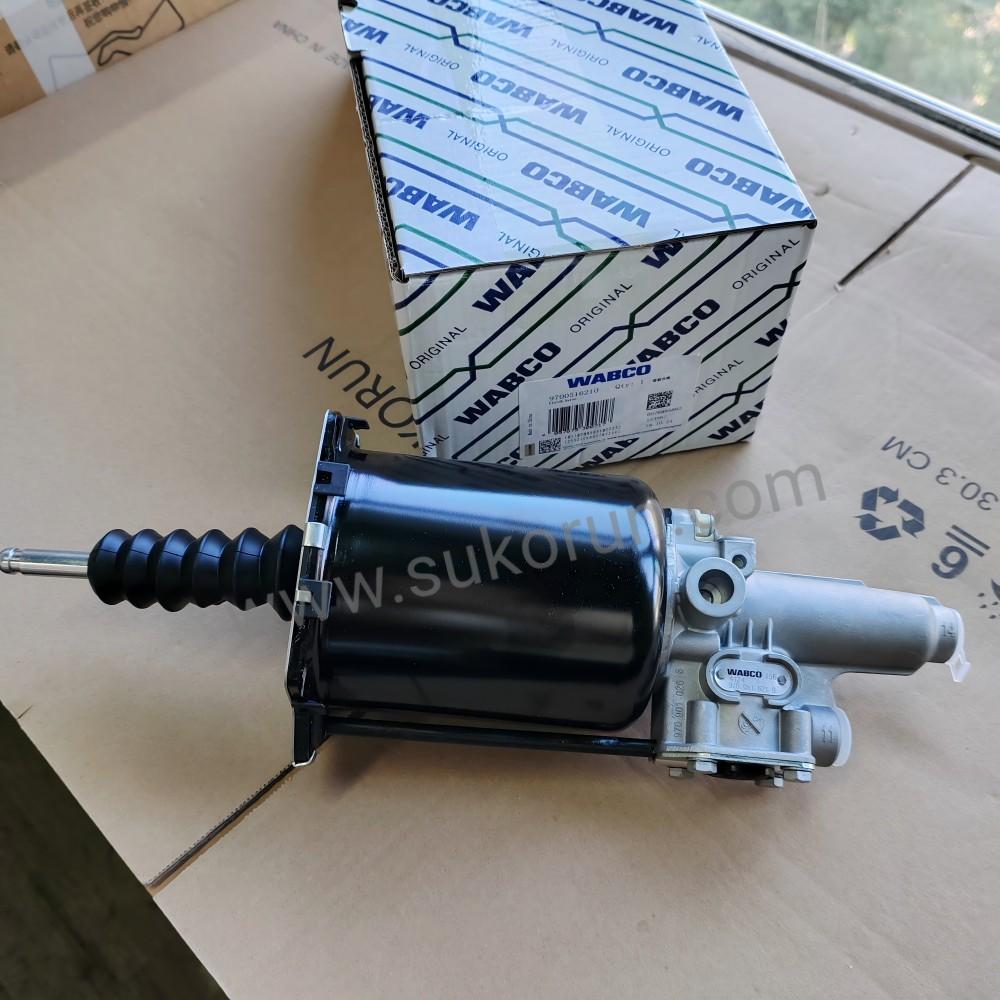

Clutch Servo 9700516210

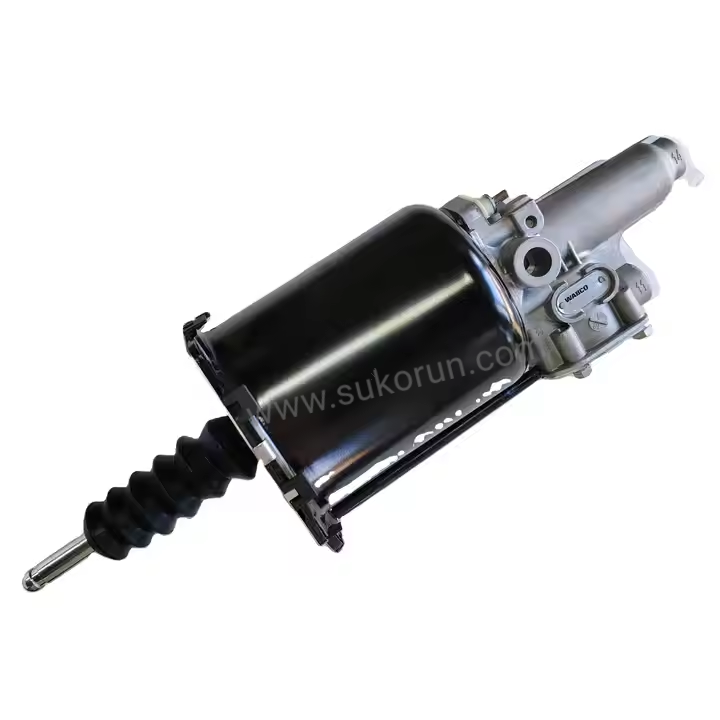

Clutch Servo 9700516210

The working principle:

‌1. Hydraulic conversion‌: The clutch slave pump works through the hydraulic system to convert hydraulic energy into thrust. When the driver steps on the clutch pedal, the pressure of the master pump is transmitted to the slave pump through the oil pipe, and the hydraulic energy in the slave pump is converted into thrust.

2. Push the release bearing‌: The thrust generated by the slave pump pushes the clutch release bearing forward, thereby disengaging the clutch. This process cuts off the power transmission between the engine and the transmission, making it easier to shift gears or start the engine.

‌3. Resume engagement‌: When the driver releases the clutch pedal, the pressure in the hydraulic system is released, and the release fork returns to its initial position with the help of the return spring, so that the clutch resumes engagement and power transmission continues.

The Clutch Slave Cylinder also has the following functions and features:

‌1. Pushing the brake pads‌: Under certain circumstances, the slave pump can push the brake pads to reduce the vehicle speed or stop.

2. Advantages of the hydraulic system‌: The power loss is small during the transmission process, and the torque can be changed by changing the cylinder diameter and stroke of the master pump and slave pump, which is equivalent to the lever effect in a hydraulic system.
When maintaining and inspecting the clutch slave cylinder, pay attention to the following points:

‌3. Check the hydraulic oil‌: Check and replace the hydraulic oil regularly to ensure the oil quality is good.
‌Check the working condition of the slave cylinder‌: Pay attention to whether the slave cylinder has signs of oil leakage, and repair or replace damaged parts in time to avoid further wear and potential safety risks.

‌4. Professional repair‌: It is recommended to have a professional auto repair technician perform inspection and repair to ensure that the problem is correctly diagnosed and repaired.
