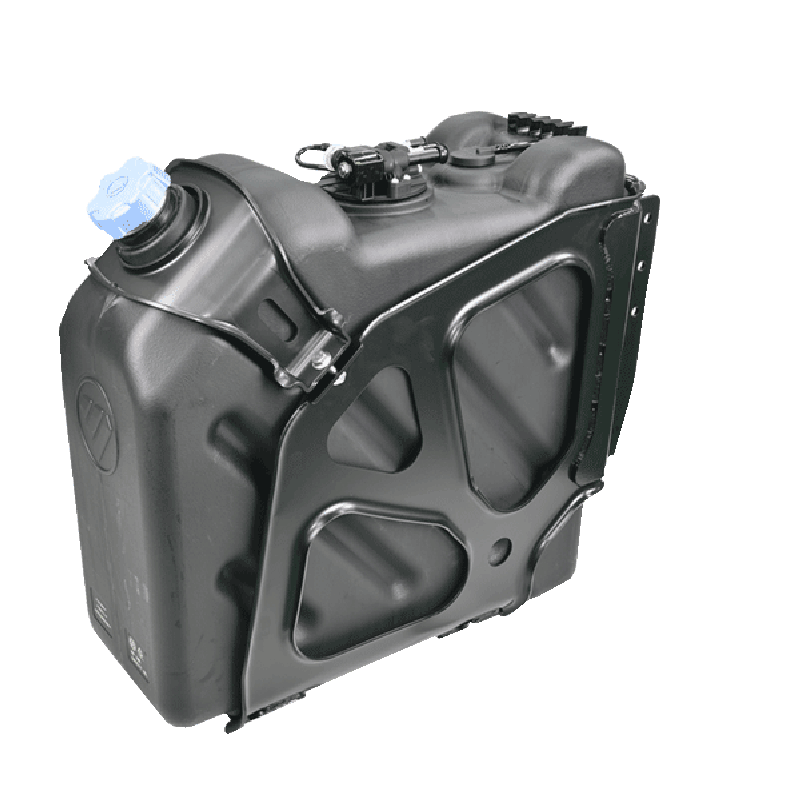

Diesel Aftertreatment System DEF / SCR / Urea Tank Adblue Tank65L

Urea tank details:

With temperature sensor and  cup.

Capacity: 65L

Function:Storage and transportation of urea liquid .adjust  the liquid level and temperature

PRODUCT DETAILS:

Function:

The SCR system applied to well-known domestic trucks integrates two modules of urea storage and monitoring.
The box is made of high-strength engineering plastics, the product has high strength, is resistant to alkaline liquid corrosion, and meets the requirements of ISO22241 standards
Compliant with EURO IV, V, VI Bharat Stage, EPA 2010, National IV V VI requirements

1. Urea storage
2. Urea level detection and concentration detection
3. Suck back urea
4. Urea filtration
5. Balance the air pressure inside and outside the box
6. Realize manual filling and automatic filling

How to maintain the urea tank / adblue tank

The maximum liquid level of urea tank should be added with urea solution to 100% (90% can be added when the temperature is low in winter). When the urea solution consumption reaches 20%, it is necessary to add urea solution. Moreover, it is necessary to check the urea liquid level and check whether there is leakage of urea liquid every day. It is not too much or too little (no less than 18%). During the maintenance of the engine every year, open the bottom of the urea tank for cleaning and drain the sediment in the tank; and conduct irregular inspection. If white crystals appear at the vent valve or liquid filling port, wash them with water or wipe them with wet cloth. If the ventilation valve is blocked, clean or replace it with water. In addition, replace the filter screen in the tank in two to three years, and check the plug-in and pipeline joints irregularly Whether it is good or not.
