1.63 Exhaust Gas After-treatment System for Diesel / Gas Generator Set
Customized Emission Gas After Treatment System for Diesel Generator Set or Gas Generator Set to reduce NOx, CO, CH, PM Soot.
Exhaust Gas After-treatment System for Diesel / Gas Generator Set
Exhaust Gas After-treatment System for Diesel / Gas Generator Set
We can customize the Emission Gas After Treatment System for Diesel Generator Set or Gas Generator Set to reduce NOx, CO, CH, PM Soot.

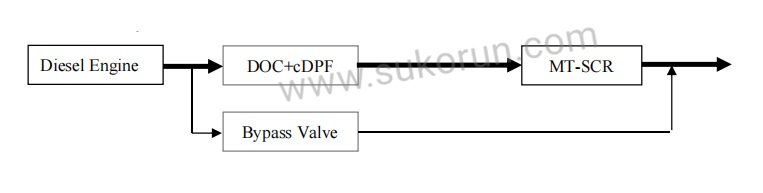

Exhaust After treatment System

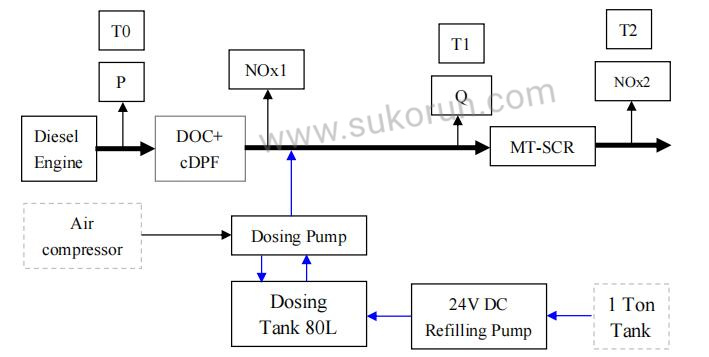

Exhaust After treatment System
Features:
With our special adblue nozzle anti blocking function, which can ensure that the nozzle will not be blocked in the case of low air pressure, sudden power off or sudden cut off of compressed air.

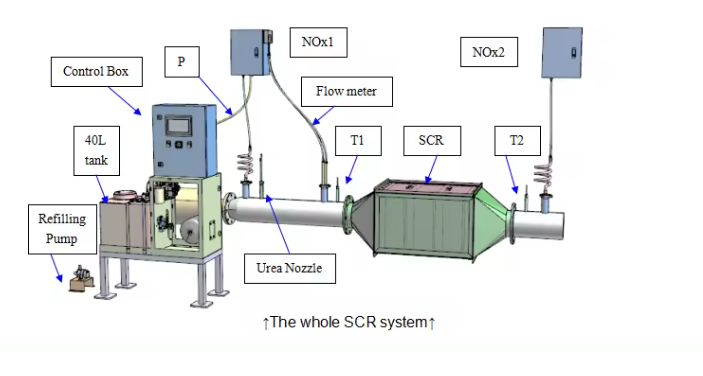

Exhaust After treatment System
Contents Example (Varies according to different requirements)
| Item | Name | Specification and function description | PCS |
| 1 | DOC | 300cpsi | 1set |
| 2 | cDPF filter | 200cpsi, Φ286×305mm 10pcs | 1set |
| 3 | Bypass Valve | 24V DC,DN600=φ630 | 1 |
| 4 | SCR catalyst reactor | Housing and catalyst | 1 |
| 5 | Mixing pipe | SUS304,DN600=φ630 | 1 |
| 6 | Nox Sensor | 5WK9 24V DC 0-1500ppm | 2 |
| 7 | Temperature Sensor | PT200, M14, -40～+850℃,L=200mm | 3 |
| 8 | Back Pressure Sensor | Differential pressure sensor -1.7～34.5kPa,0.5～4.5V With soft tubes and hose clamps. | 1 |
| 9 | Exhaust Flow Sensor | 0～12000Nm3/h，4-20mA | 1 |
| 10 | Dosing Unit | Daily dosing tank: 80L With level sensor, suction port, return port, breathing port, refilling port, with suction and return pipes. Pump: 24V DC 0～60L/h With special nozzle anti blocking function With oil water separator and oil gas separator. Urea Nozzle: SUS 304 Dosing pipe: L=8m | 1 |
| 11 | Refilling Pump | 24VDC 60W, φ 22, Pump head: 8.5m, 37L/min, life:20000h | 1 |
| 12 | Control unit | 350W 24V DC power supply. 7 inch HMI×1 PLC+ Smart SCR-controller×1 OMRON Relays Power Cable: 3×1.00mm2 L=8m with PA bellows | 1 |
| 13 | NOx Sampling Probe | SUS304 | 2 |
| 14 | Wire harness | For all sensors and dosing/refilling pump, with PA bellows. About 10～15m, 25m for refilling pump. | 1set |
Find out more other After treatment parts, please click hear.
