A1197-005-02 Voith E300 gear range slector

Genuine A1197-005-02 gear range selector for VOITH E300

Categories: Truck & Bus Parts, ZF Transmission & Axle Tags: A1197-005-02, Automatic Transmission, E300, Gear selector, transmission shift switch, VOITH

Description

Genuine A1197-005-02 gear range selector for VOITH E300

Serial numbers: 147063

Country/Region of Manufacture: EU

Function: To The function of a gear switch is a key component in the automotive transmission system, which controls the operation of the clutch and transmission to achieve vehicle shifting and shifting. Through the gear switch, the driver can select the appropriate gear according to their needs, enabling the vehicle to achieve the best power output under different driving conditions.

Working principle: Shifting is achieved by changing the transmission gear. There are gears with different gears on the tire rotation shaft. When the engine speed remains constant, gears of different sizes (gears are different) are combined with the engine, and the circumferential speed obtained by the large gear is less than that of the small gear. According to the knowledge of torque, when in low gear, the gear is large, and the engine drives a large radius with a small radius, the car can obtain a larger driving force. When in high gear, the engine drives a small radius with a fast circumferential speed, which means the car is fast but the torque is small, which means the driving force is small. Therefore, shifting a car is changing the transmission gear.

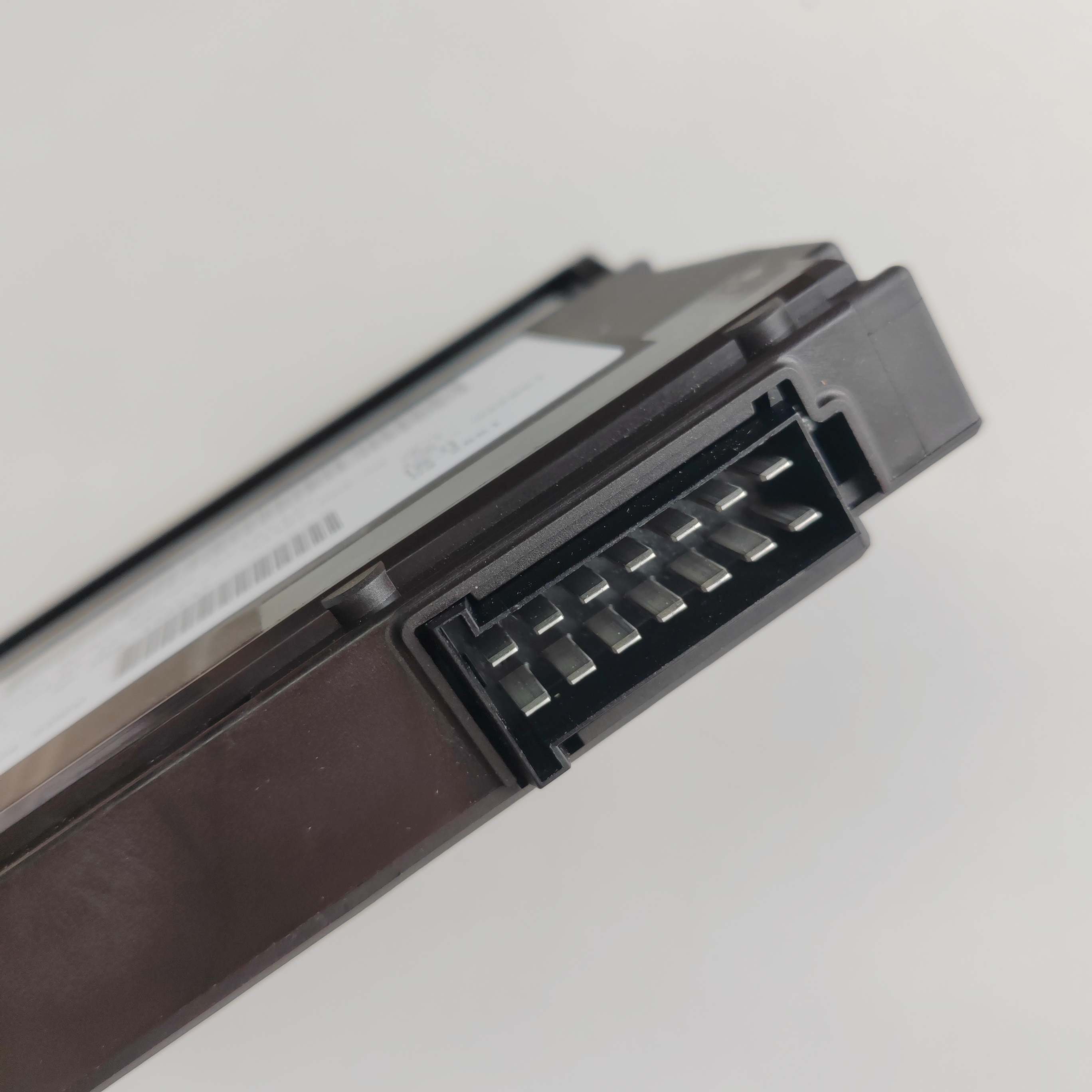

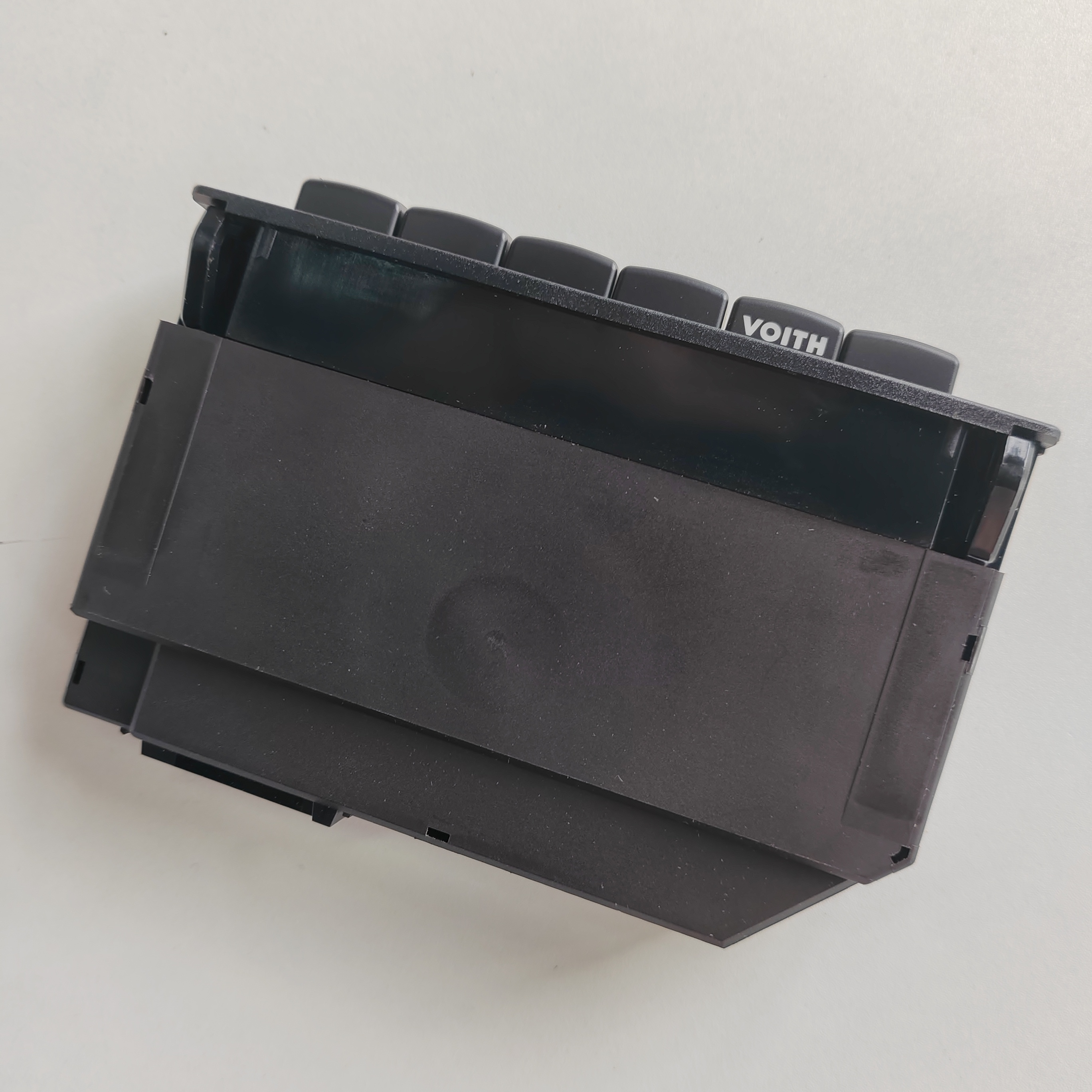

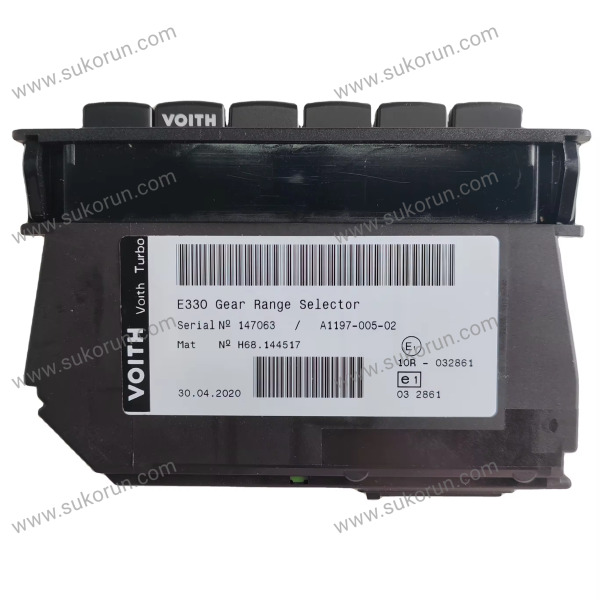

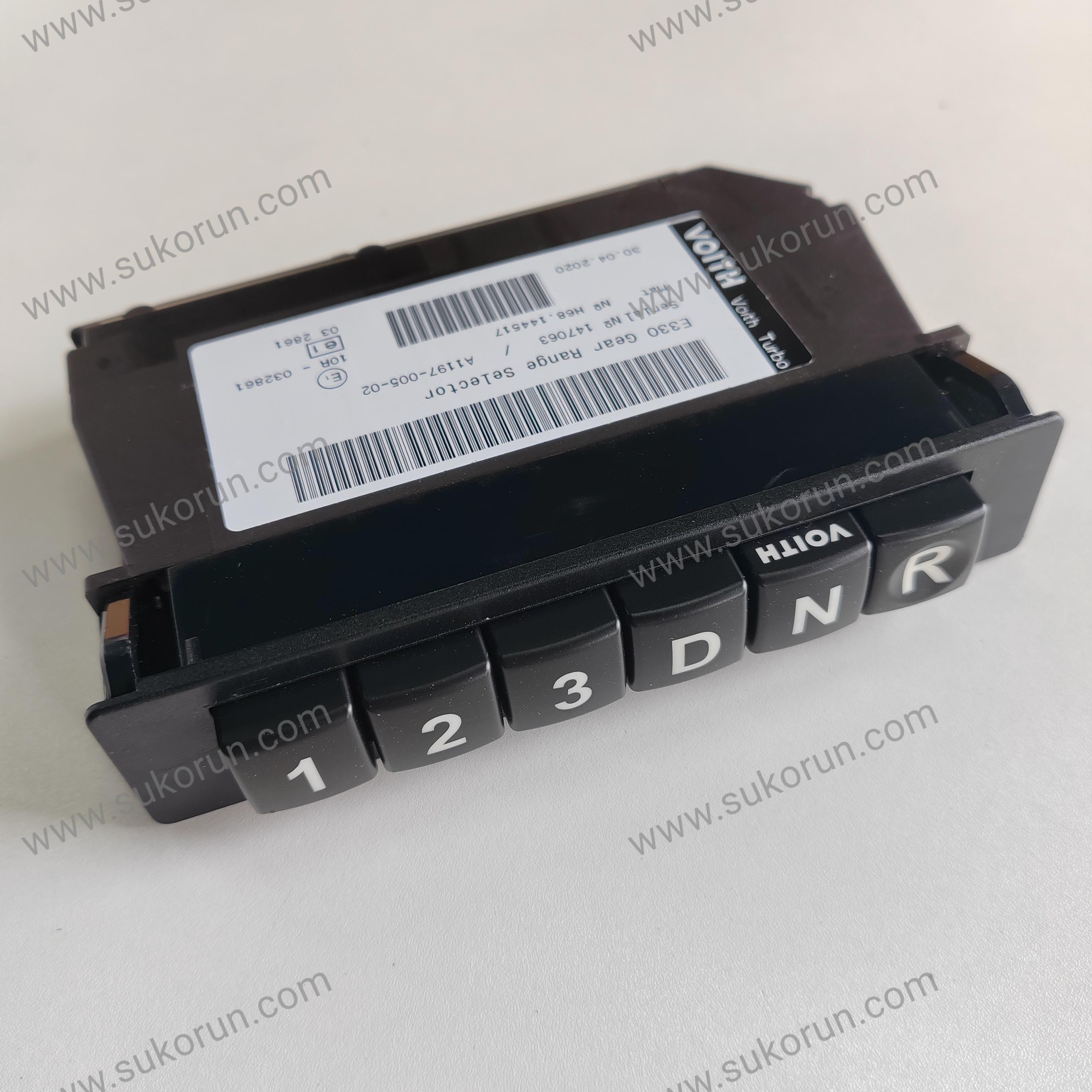

Detailed pictures:
