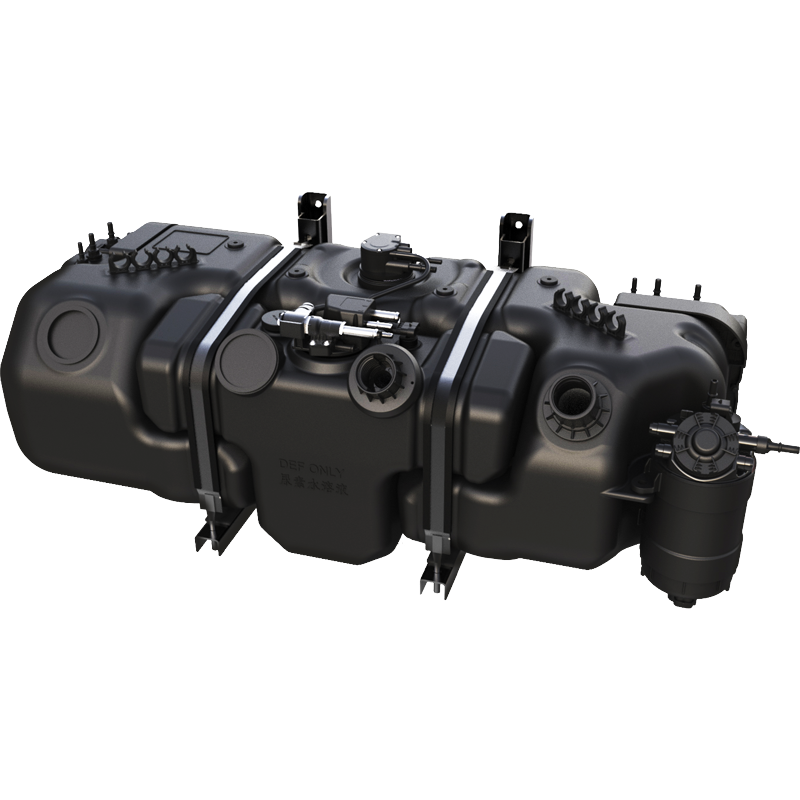

Diesel Aftertreatment System DEF / SCR Integrated fuel tank urea tank

Integrated fuel tank urea tank details:

Box size 1113*460*403mm

urea tank volume 12L
Fuel tank volume 80L

Function:

Lightweight is the current development trend of the automobile industry. Commercial vehicles, construction machinery, and agricultural machinery require large-capacity fuel tanks due to their compact space and inconvenient fueling. The integrated fuel tank urea tank developed by KUS can effectively reduce the management cost of suppliers, reduce the production and assembly time of customers, and at the same time make the body space layout neat and beautiful.

1. Store diesel and urea solution
2. Balance the air pressure inside and outside the box; rollover to prevent leakage
3. Oil absorption, oil return, and liquid level detection
4. Automatic limit filling of diesel fuel tank
5. Suction and return urea, measure liquid level, and thaw urea
6. Automatic and manual limit filling of urea filling port

How to maintain the urea tank / adblue tank

The maximum liquid level of urea tank should be added with urea solution to 100% (90% can be added when the temperature is low in winter). When the urea solution consumption reaches 20%, it is necessary to add urea solution. Moreover, it is necessary to check the urea liquid level and check whether there is leakage of urea liquid every day. It is not too much or too little (no less than 18%). During the maintenance of the engine every year, open the bottom of the urea tank for cleaning and drain the sediment in the tank; and conduct irregular inspection. If white crystals appear at the vent valve or liquid filling port, wash them with water or wipe them with wet cloth. If the ventilation valve is blocked, clean or replace it with water. In addition, replace the filter screen in the tank in two to three years, and check the plug-in and pipeline joints irregularly Whether it is good or not.
