Intelligent series – 4-Wheel-UGV Universal Chassis
Universal chassis is equipped with Hub Motor, Servo 4WD, Independent Suspension,.
Standard Protocol can allow Function Expansion and Secondary Development.

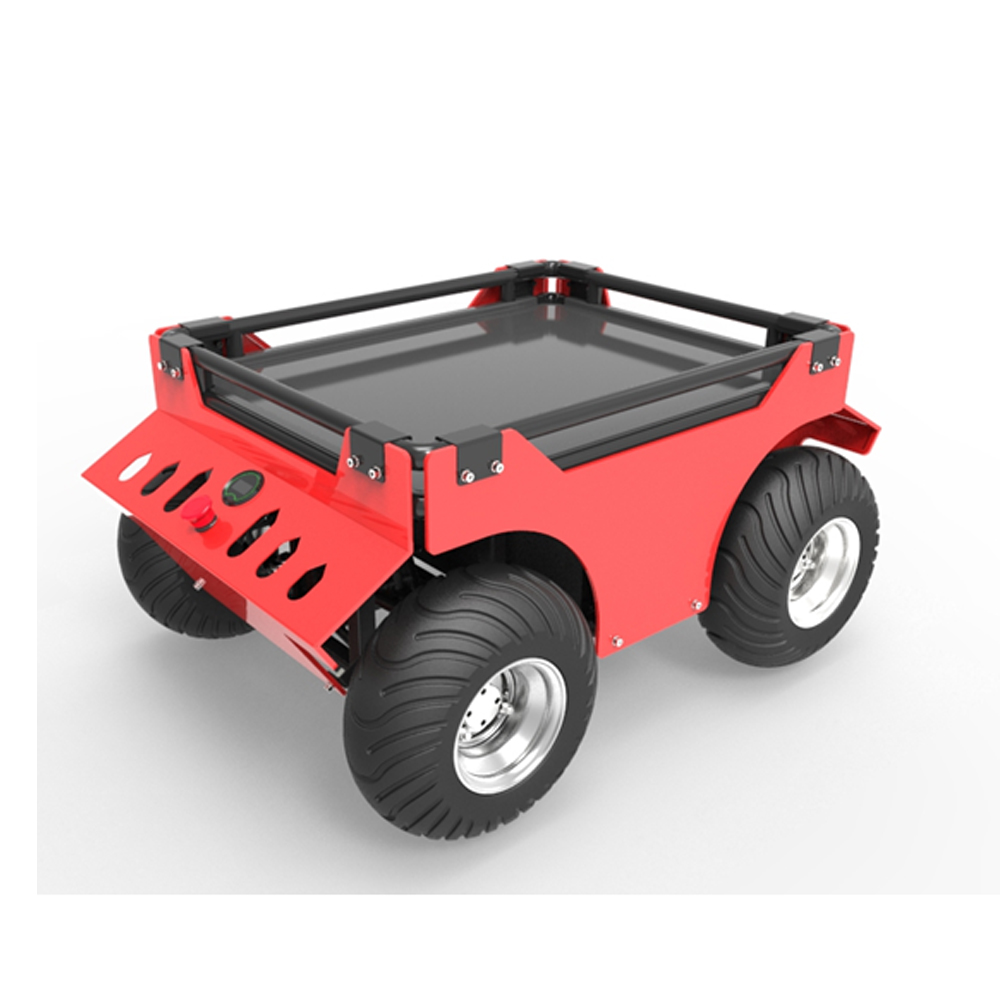

4-Wheel-UGV Universal Chassis
The indoor and outdoor universal chassis designed for robot application is small and compact. It can be easily used in indoor narrow space, off-road.
The four-wheel independent suspension can adapt to rough road conditions. The standardized protocol and interface can meet the needs of secondary development.

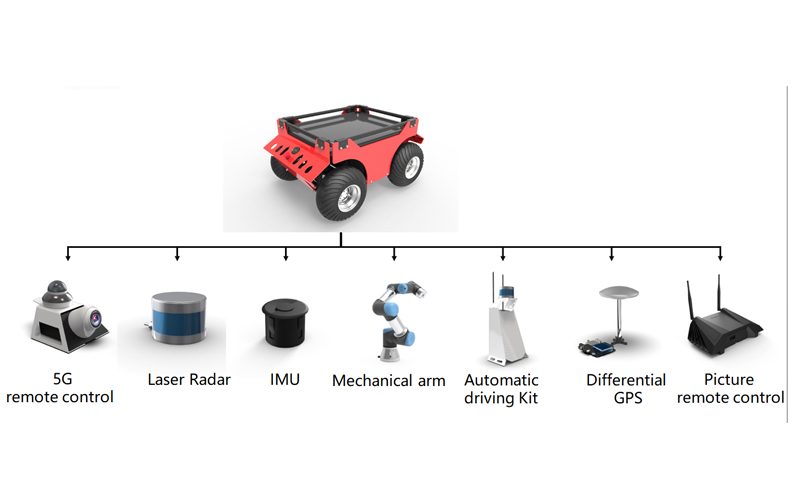

The chassis can be applied to automatic driving teaching, indoor and outdoor inspection, environmental detection, logistics and transportation, and environmental protection by adding different functional components and unmanned driving perception system It also explores the application of various new functions.
Model | VDSUGV01 | Dimension (mm) | 980×680×380 |
Weight | 150 Kg | Max. speed | 25Km/h |
Wheelbase | 580mm | Tire (mm) | 330mm (13 inches) |
Distance per charge | ≥100km （4~5h） | Load weight | 100kg |
Minimum turning radius | pivot steering | Climb Angle | ≥58%（30° when full load） |
Curb weight | ≤60kg | Approach angle / departure angle | 60°/60° |

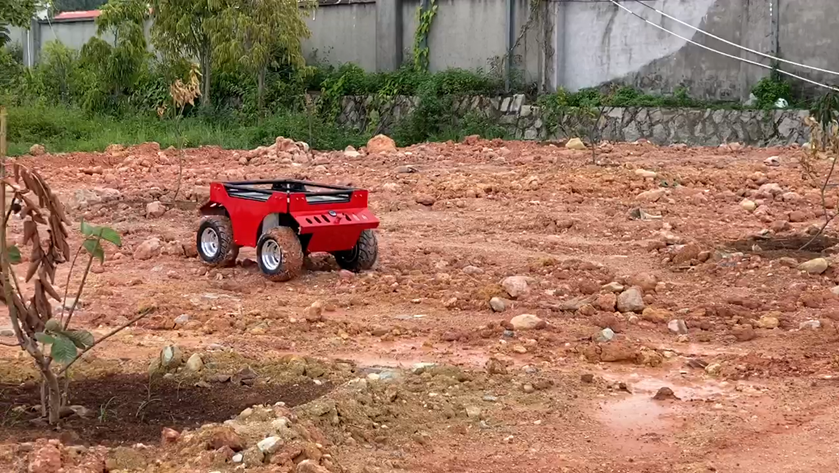

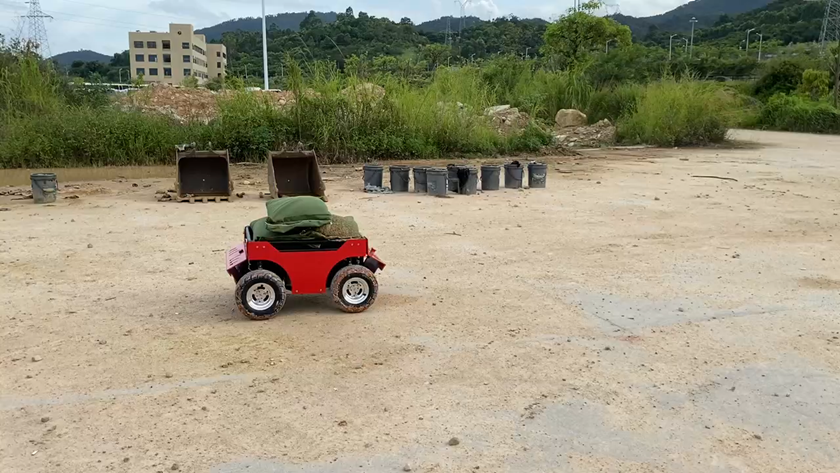

UGV-application
