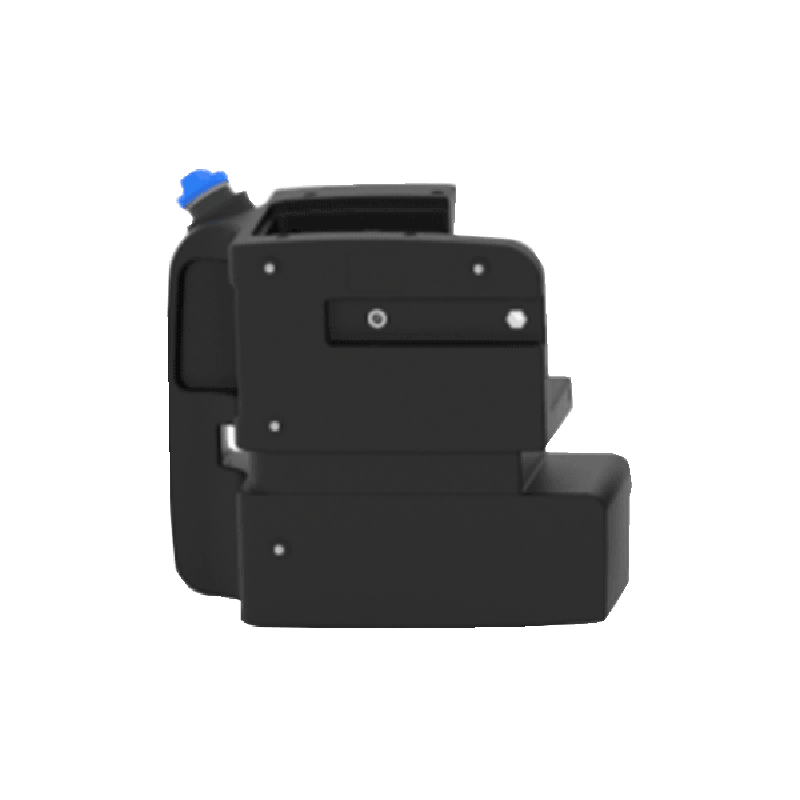

Diesel Aftertreatment System DEF / SCR / Urea rotomolding Tank 45L

PRODUCT DETAILS:

Material: MDPE Box Rated volume: 45L
Box molding process: rotomolding Box color: black
Installation method: bracket lock nut installation Operating temperature: -40~85°C
Protection class: IP67

Function:

SCR system applied to well-known domestic trucks
Integrated urea storage and monitoring modules
The box is made of high-strength engineering plastics, the product has high strength, is resistant to alkaline liquid corrosion, and meets the requirements of ISO22241 standards
Compliant with EURO IV, V, VI Bharat Stage, EPA 2010, National IV V VI requirements

1. Urea storage
2. Urea level detection and concentration detection
3. Suck back urea
4. Urea filtration
5. Balance the air pressure inside and outside the box
6. Realize manual filling and automatic filling

How to maintain the urea tank / adblue tank

The maximum liquid level of urea tank should be added with urea solution to 100% (90% can be added when the temperature is low in winter). When the urea solution consumption reaches 20%, it is necessary to add urea solution. Moreover, it is necessary to check the urea liquid level and check whether there is leakage of urea liquid every day. It is not too much or too little (no less than 18%). During the maintenance of the engine every year, open the bottom of the urea tank for cleaning and drain the sediment in the tank; and conduct irregular inspection. If white crystals appear at the vent valve or liquid filling port, wash them with water or wipe them with wet cloth. If the ventilation valve is blocked, clean or replace it with water. In addition, replace the filter screen in the tank in two to three years, and check the plug-in and pipeline joints irregularly Whether it is good or not.
