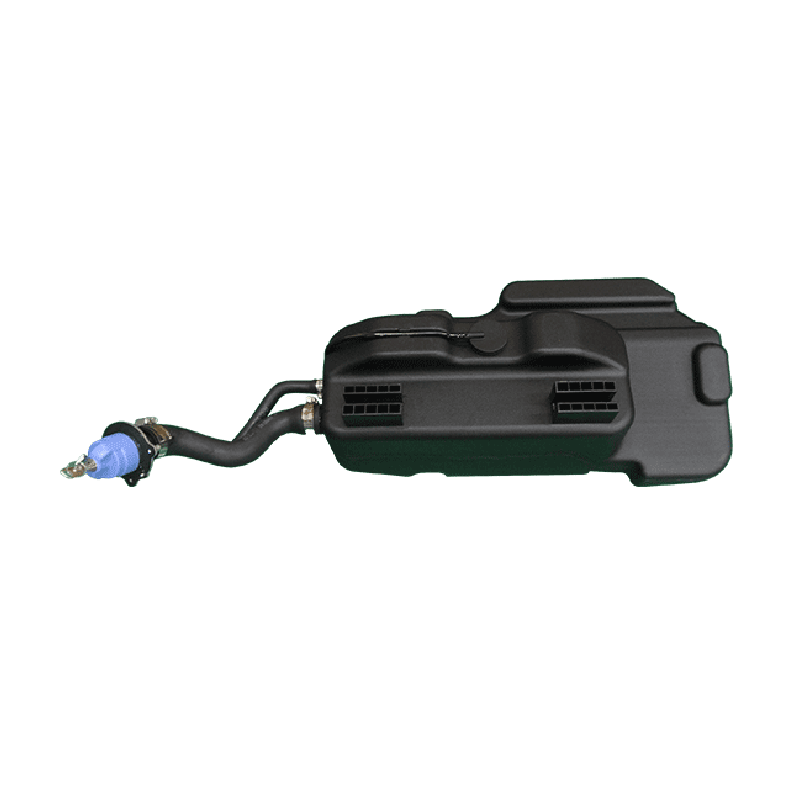

Diesel Aftertreatment System DEF / SCR / Urea Tank Adblue Tank12L

Urea tank details:

With temperature sensor and  cup.

PRODUCT DETAILS:

Length, width and height: 692*281*212MM

Filling port: in line with ISO 22241-5 standard;
Effective volume of urea tank: 12L

flow filling: can meet the high speed of 40L/min

Function:

The first urea tank applied to a pickup truck;
The urea tank and pipeline have thermal insulation design, which can be installed near the heat source;
It has the advantage of high integration, and the whole set includes: urea tank, bracket, extension filling pipe, urea pump and other supporting parts.

1. The urea tank can store urea;
2. The bracket provides the function of installing and fixing the urea tank on the frame;
3. Extend the filling pipe to provide urea filling channel;

How to maintain the urea tank / adblue tank

The maximum liquid level of urea tank should be added with urea solution to 100% (90% can be added when the temperature is low in winter). When the urea solution consumption reaches 20%, it is necessary to add urea solution. Moreover, it is necessary to check the urea liquid level and check whether there is leakage of urea liquid every day. It is not too much or too little (no less than 18%). During the maintenance of the engine every year, open the bottom of the urea tank for cleaning and drain the sediment in the tank; and conduct irregular inspection. If white crystals appear at the vent valve or liquid filling port, wash them with water or wipe them with wet cloth. If the ventilation valve is blocked, clean or replace it with water. In addition, replace the filter screen in the tank in two to three years, and check the plug-in and pipeline joints irregularly Whether it is good or not.
