VD18 Unmanned Electric Road Sweeper With High Pressure Cleaning
VD18 Unmanned Electric Road Sweeper with High Pressure Cleaning
VD18 Unmanned Electric Road Sweeper with High Pressure Cleaning
Products Description & Function
VD18 electric sweeper is an articulated, wheel motor-driven, suction sweeper, which has the functions of road cleaning, high-pressure water cleaning, sewage recycling and so on.
It is suitable for sweeping and cleaning in areas where large road sweepers cannot or are inconvenient to enter, such as urban auxiliary roads, narrow roads, non-motorized lanes, sidewalks, pedestrian streets, scenic spots, parks, schools, residential quarters and so on.
Parameters
| Total length [excluding sweeping disc) | 3200mm | Motor model | PMS 6o1C，PMP Italy |
| Total width | 1210mm | Motor power | 1 2kW/5000r/min |
| Total height (excluding alarm light) | 2050mm | Sweeping width | 1.8m |
| Wheelbase | 1450mm | Sweep rate | ≥92% |
| Track width | 985mm | Maximum suction particle size | 100mm |
| Maximum total mass | 2300kg | Operation speed | 0~10km/h |
| Overall curb mass | 1700kg | Maximum working hours | 8h |
| Maximum speed | 20km/h | Volume of clean water tank | 180L |
| Minimum turning radius (outer wall) | 2500mm | Bin volume | 660L |
| Minimum ground clearance | 110mm | Bin discharge angle | ≥46° |
| Maximum climbing gradient | 30% | Steering Type | Articulated steering |
| Battery | Ternary lithium battery，80V / 405.6Ah | Driving form | 4 x 2 rear wheel drive |
Photos

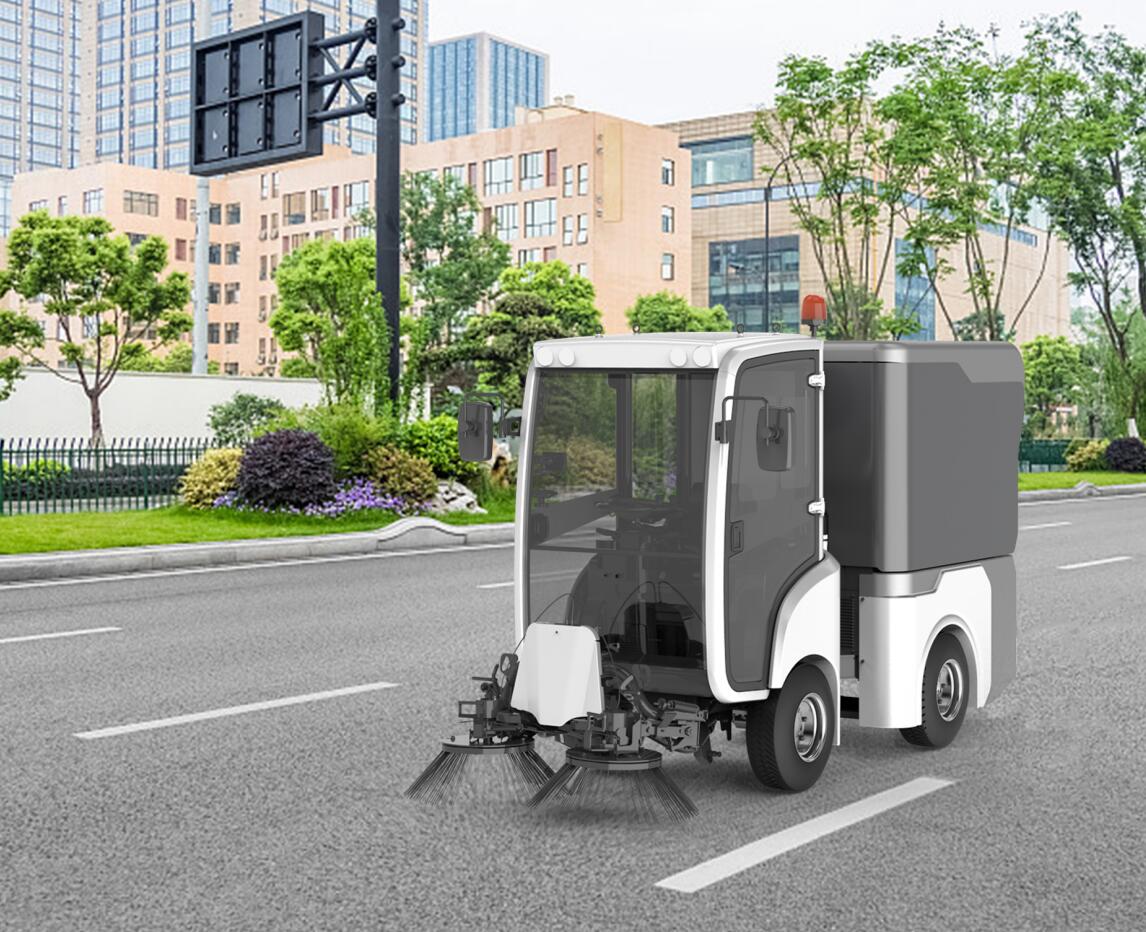

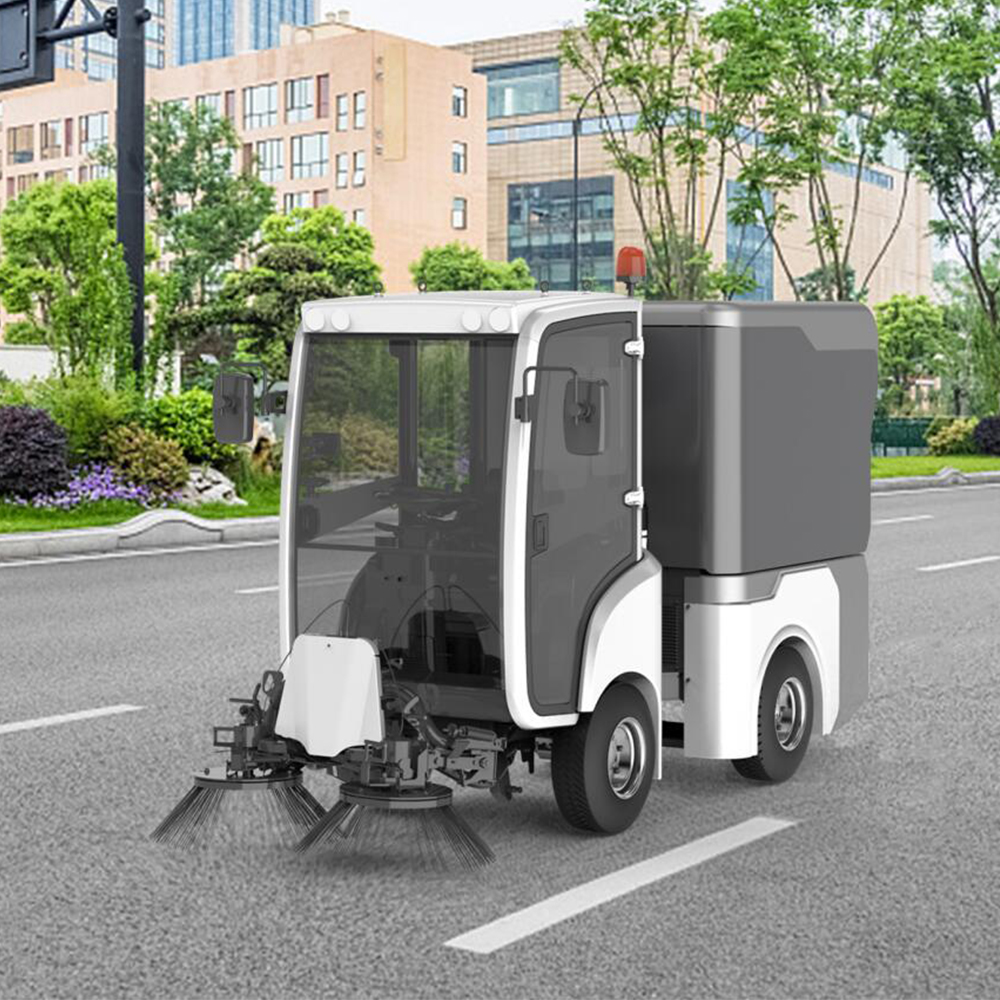

VD18 Unmanned Electric Road Sweeper With High Pressure Water Cleaning
Features
Vd18 sweeper is equipped with imported wheel drive motor, articulated frame, panoramic windshield cab, air suspension seat, hydraulic steering system, high-capacity lithium battery, all aluminum alloy box and cover, low-speed and high-load radial tire. Special devices include fan, dustbin, cleaning device, suction nozzle, water spray and dust reduction system, high-pressure water cleaning system, sewage recycling system, hydraulic system, electric control system and other components. The main supporting parts are purchased on a global basis, with excellent performance and reliable operation.
Other sweeper and cleaning vehicle, please see here.
