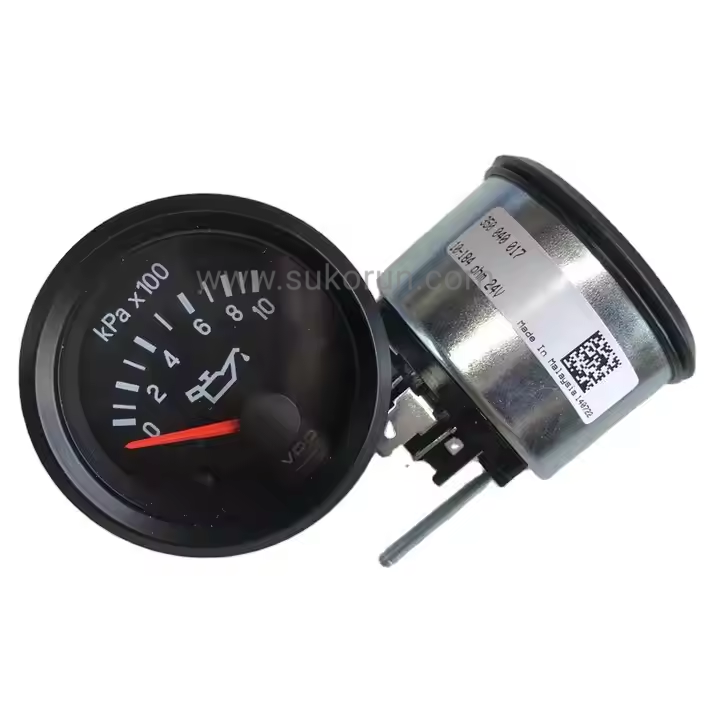

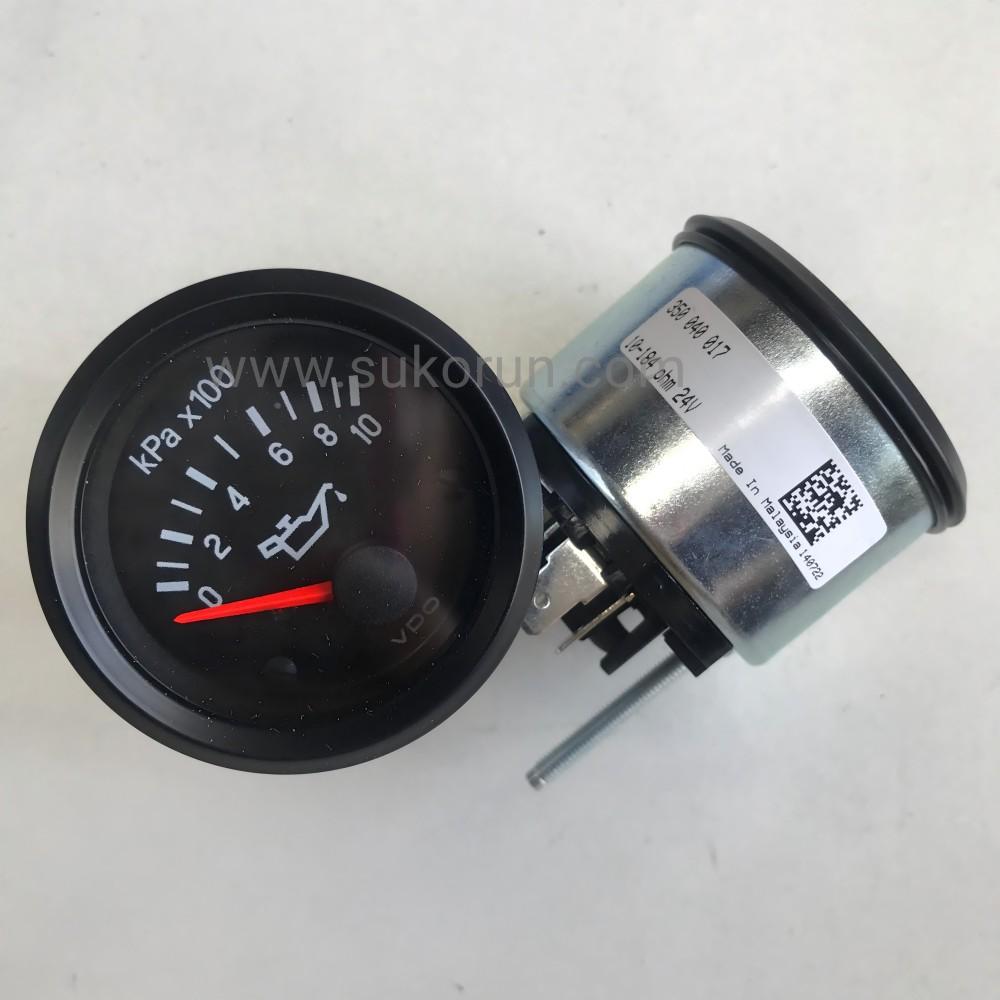

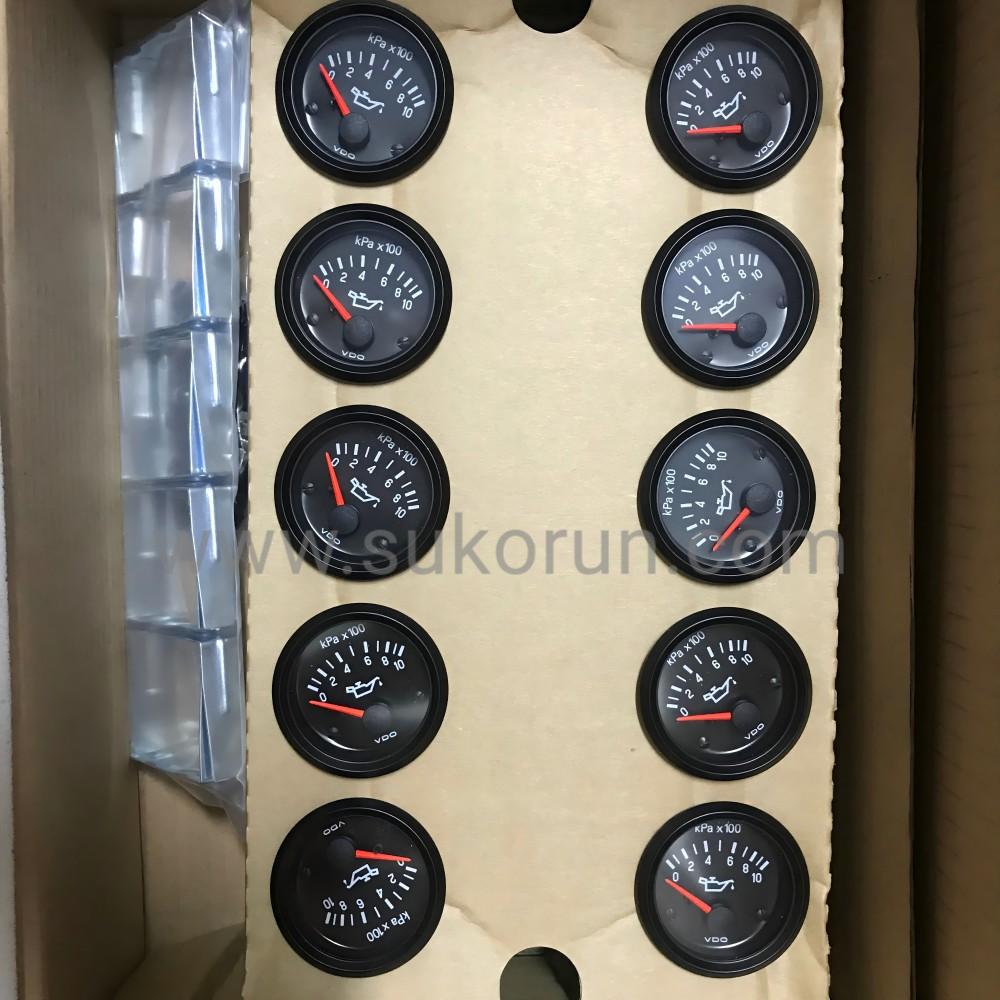

VDO 350 040 017 Oil pressure gauge 24V 350-040-017 0-10 bar

Part NO. : 350 040 017

Brand: VDO

Quality: Genuine Quality

Product Details:

350-040-017

350-040-017

350-040-017

The main function of the oil pressure gauge:
It is to detect and display the oil pressure in the main oil circuit of the engine to ensure the normal operation of the engine. ‌

The oil pressure gauge helps the driver understand the working status of the engine lubrication system by detecting the oil pressure. If the oil pressure is too low, the oil pressure gauge will indicate in time, thereby preventing major faults such as cylinder pulling and tile burning caused by lack of oil.

Usage and maintenance suggestions

1. Installation location ‌: The VDO oil pressure gauge is usually installed in the main oil circuit of the engine, and the oil pressure is detected by the oil pressure sensor.
‌2. Working principle ‌: The sliding resistor in the oil pressure sensor uses the oil pressure to push the potentiometer to move, change the current of the oil pressure gauge, thereby changing the position of the pointer and indicating the oil pressure ‌
.
‌3. Maintenance ‌: Regularly check the indication of the VDO oil pressure gauge to ensure that the oil pressure is within the normal range. If the oil pressure is too low, add oil in time to avoid serious damage to the engine. ‌
