VDO Cockpit International Coolant Temperature 120°C 52mm 12V 310-030-002G

Part NO. : 310-030-002G

Temperature Range: -40°C to +80°C

Brand: VDO

Quality: Genuine Quality

package	part number	Rang(unit)	Installation (Hole) diameter	Operating voltage
Coolant temperature gauge with ISO mark
1 piece	310-030-002G	40 -120°C	52mm	12V
10 pieces	310-030-002C	40 -120°C	52mm	12V
1 piece	310-040-002G	40 -120°C	52mm	24V
10 pieces	310-040-002C	40 -120°C	52mm	24V
10 pieces	310-030-020C	40-120°C/100-250F	52mm	12V
10 pieces	310-040-020C	40 -120°C/100-250F°	52mm	24V

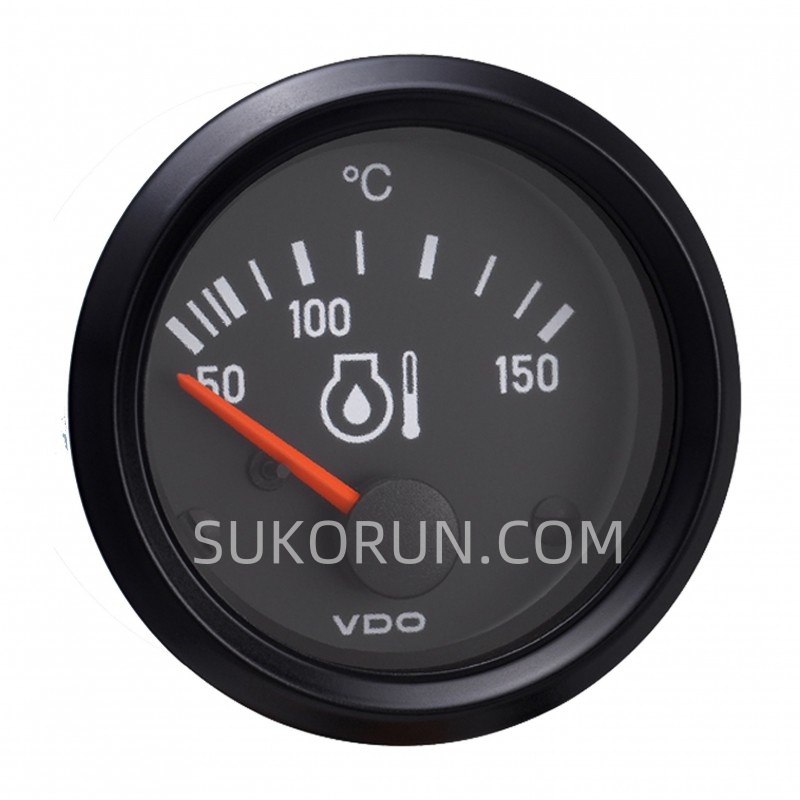

Oil temperature gauge with ISO mark
1 piece	310-030-003G	50 -150°C	52mm	12V
10 pieces	310-030-003C	50 -150°C	52mm	12V
1 piece	310-040-003G	50 -150°C	52mm	24V
10 pieces	310-040-003C	50 -150°C	52mm	24V

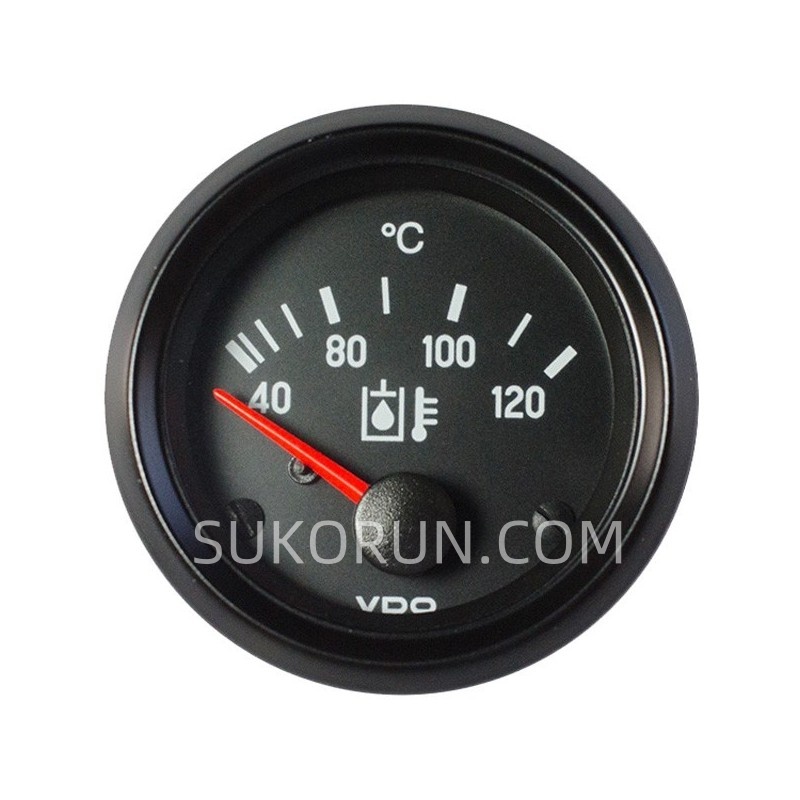

Hydraulic oil temperature gauge with ISO mark
1 piece	310-030-013G	40 -120°C	52mm	12V
10 pieces	310-030-013C	40 -120°C	52mm	12V
1 piece	310-040-013G	40 -120°C	52mm	24V
10 pieces	310-040-013C	40 -120°C	52mm	24V

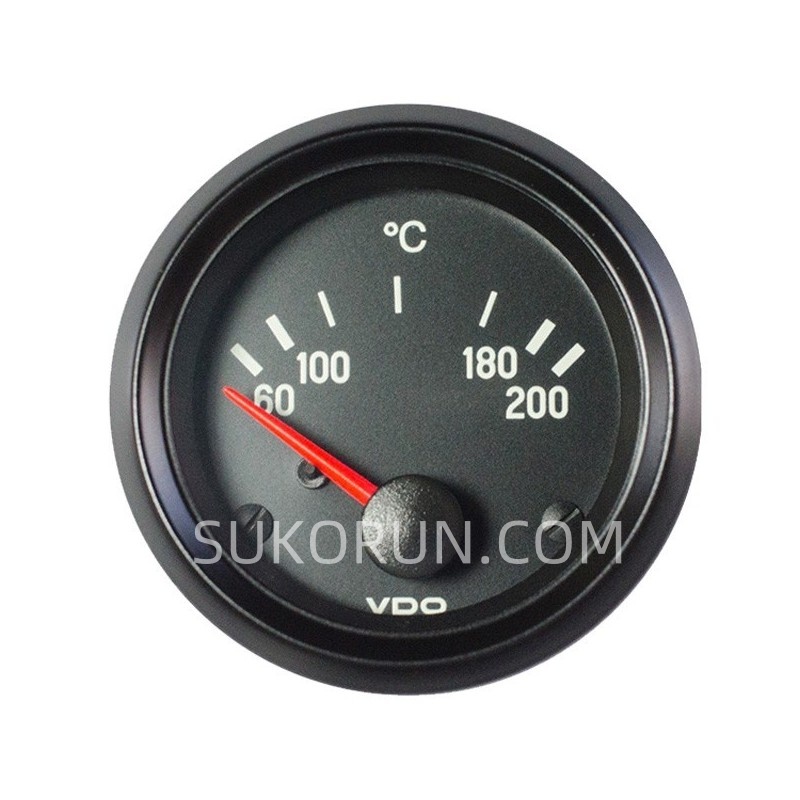

Air cooled engine temperature gauge with ISO mark
1 piece	310-030-004G	60 -200°C	52mm	12V
10 pieces	310-030-004C	60 -200°C	52mm	12V
1 piece	310-040-004G	60 -200°C	52mm	24V
10 pieces	310-040-004C	60 -200°C	52mm	24V

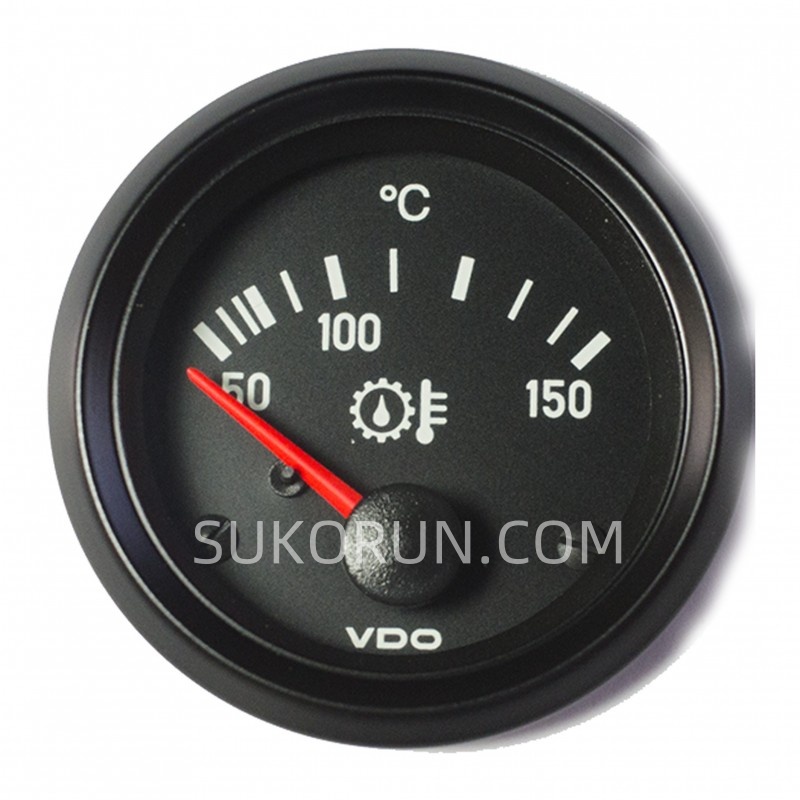

Transmission oil temperature gauge with ISO mark
1 piece	310-030-015G	50 -150°C	52mm	12V
10 pieces	310-030-015C	50 -150°C	52mm	12V
1 piece	310-040-015G	50 -150°C	52mm	24V
10 pieces	310-040-015C	50 -150°C	52mm	24V
pyrometer
1 piece	397-015-003C	0 –900°C	52mm
External temperature indicator
1 piece	397-035-001G	– 25°C ~ +40°C	52mm	12V
10 pieces	333-035-014C	0-6000RPM	80mm	12/24V
1 piece	333-055-002G	0-3000RPM	100mm	12/24V
10 pieces	333-055-002C	0-3000RPM	100mm	12/24V

Installation (Hole)diameter and Qutside diameter:	52 mm-2 1/16 lnch en 59.25 mm-2 1/3 lnch
Installation depth:	67.5 mm
Locking height with Spinlock nut:	Not available
Locking height with bracket:	0.5 mm-8 mm
Flushmount:	None
Coolant temperature range:	40 -120°C
Sensor sianal coolant temperature qauge	VDO NTC Thermistor 287.4-22.7 0hm
Accuracy:	Not specified by VDO
Connection:	AMP Male blade connector 6.3×0.8mm (3x)
lllumination connection:	AMP Male blade connector 6,3 x0,8mm(2x)
Illumination connection:	AMP Male blade connector 6,3 x 0,8mm (4x)
