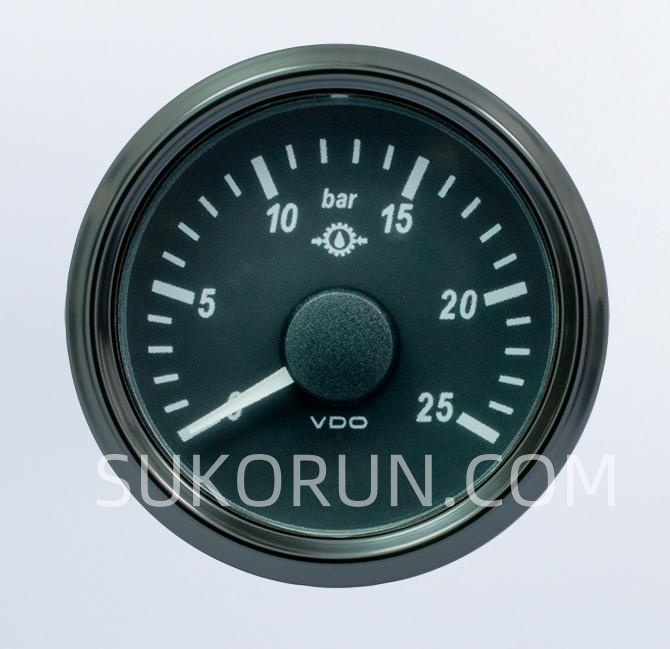

VDO 25bar Gear Oil Pressure Gauge Black 52 Mm 2 1/16in A2C3833460001/A2C3833170001
VDO 25bar Gear Oil Pressure Gauge 52 m A2C3833460001/A2C3833170001
VDO 25bar Gear Oil Pressure Gauge Black 52 Mm 2 1/16in
A2C3833460001/A2C3833170001
Part NO. :A2C3833460001/A2C3833170001
Temperature Range: -40°C to +80°C
Brand: VDO
Quality: Genuine Quality
VDO 25bar Gear Oil Pressure Gauge Black 52 Mm 2 1/16in A2C3833460001
OTHER PART NUMBER:
| Individually package | Large package (10 pieces) | After-sales package | Backlight color | Rang(unit) | CAN |
| A2C3833460001 | A2C3833460025 | A2C3833460030 | WHITE | 0-25bar | 65272 127 0x23 |
| A2C3832720001 | A2C3832720025 | A2C3832720030 | WHITE | 0-30bar | 65272 127 0x23 |
| A2C3833500001 | A2C3833350025 | A2C3833350030 | WHITE | 0-400psi | 65272 127 0x23 |
| A2C3832740001 | A2C3832740025 | A2C3832740030 | WHITE | 0-500psi | 65272 127 0x23 |
| A2C3833460031 | AMBER | 0-25bar | 65272 127 0x23 | ||
| A2C3832720031 | AMBER | 0-30bar | 65272 127 0x23 | ||
| A2C3833350031 | AMBER | 0-400psi | 65272 127 0x23 | ||
| A2C3832740031 | AMBER | 0-500psi | 65272 127 0x23 | ||
| A2C3833460032 | RED | 0-25bar | 65272 127 0x23 | ||
| A2C3832720032 | RED | 0-30bar | 65272 127 0x23 | ||
| A2C3833350032 | RED | 0-400psi | 65272 127 0x23 | ||
| A2C3832740032 | RED | 0-500psi | 65272 127 0x23 | ||
| A2C3833460033 | GREEN | 0-25bar | 65272 127 0x23 | ||
| A2C3832720033 | GREEN | 0-30bar | 65272 127 0x23 | ||
| A2C3833350033 | GREEN | 0-400psi | 65272 127 0x23 | ||
| A2C3832740033 | GREEN | 0-500psi | 65272 127 0x23 | ||
| A2C3833460034 | BLUE | 0-25bar | 65272 127 0x23 | ||
| A2C3832720034 | BLUE | 0-30bar | 65272 127 0x23 | ||
| A2C3833350034 | BLUE | 0-400psi | 65272 127 0x23 | ||
| A2C3832740034 | BLUE | 0-500psi | 65272 127 0x23 |
OTHER PRODUCT:

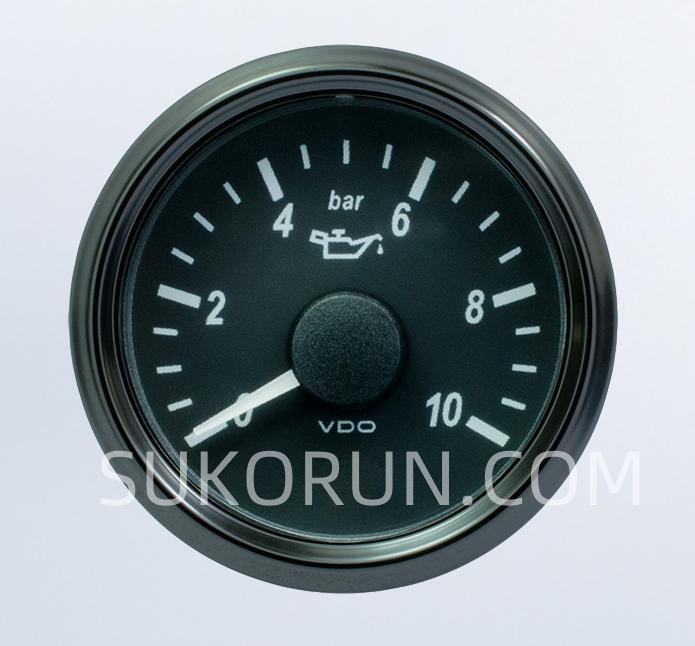

VDO SingleViu 10bar Oil Pressure Gauge Black 52 Mm 2 1/16in A2C3833170001
| Individually package | Large package (10 pieces) | After-sales package | Backlight color | Rang(unit) | CAN |
| A2C3833170001 | A2C3833170025 | A2C3833170030 | WHITE | 0-10bar | 65263 100 0x22 |
| A2C3832690001 | A2C3832690025 | A2C3832690030 | WHITE | 0-10bar | 65263 100 0x22 |
| A2C3833240001 | A2C3833240025 | A2C3833240030 | WHITE | 0 -150 psi | 65263 100 0x22 |
| A2C3833300001 | A2C3833300025 | A2C3833300030 | WHITE | 0-150psi | 65263 100 0x22 |
| A2C3832700001 | A2C3832700025 | A2C3832700030 | WHITE | 0-150psi | 65263 100 0x22 |
| A2C3833160001 | A2C3833160025 | A2C3833160030 | WHITE | 0-5bar | 65263 100 0x22 |
| A2C3833230001 | A2C3833230025 | A2C3833230030 | WHITE | 0-80psi | 65263 100 0x22 |
| A2C3833190030 | A2C3833190025 | A2C3833190030 | WHITE | 0-80psi | 65263 100 0x22 |
| A2C3833170031 | AMBER | 0-10bar | 65263 100 0x22 | ||
| A2C3832690031 | AMBER | 0-10bar | 65263 100 0x22 | ||
| A2C3833240031 | AMBER | 0 -150 psi | 65263 100 0x22 | ||
| A2C3833300031 | AMBER | 0-150psi | 65263 100 0x22 | ||
| A2C3832700031 | AMBER | 0-150psi | 65263 100 0x22 | ||
| A2C3833160031 | AMBER | 0-5bar | 65263 100 0x22 | ||
| A2C3833230031 | AMBER | 0-80psi | 65263 100 0x22 | ||
| A2C3833190031 | AMBER | 0-80psi | 65263 100 0x22 | ||
| A2C3833170032 | RED | 0-10bar | 65263 100 0x22 | ||
| A2C3832690032 | RED | 0-10bar | 65263 100 0x22 | ||
| A2C3833240032 | RED | 0 -150 psi | 65263 100 0x22 | ||
| A2C3833300032 | RED | 0-150psi | 65263 100 0x22 | ||
| A2C3832700032 | RED | 0-150psi | 65263 100 0x22 | ||
| A2C3833160032 | RED | 0-5bar | 65263 100 0x22 | ||
| A2C3833230032 | RED | 0-80psi | 65263 100 0x22 | ||
| A2C3833190032 | RED | 0-80psi | 65263 100 0x22 | ||
| A2C3833170033 | GREEN | 0-10bar | 65263 100 0x22 | ||
| A2C3832690033 | GREEN | 0-10bar | 65263 100 0x22 | ||
| A2C3833240033 | GREEN | 0 -150 psi | 65263 100 0x22 | ||
| A2C3833300033 | GREEN | 0-150psi | 65263 100 0x22 | ||
| A2C3832700033 | GREEN | 0-150psi | 65263 100 0x22 | ||
| A2C3833160033 | GREEN | 0-5bar | 65263 100 0x22 | ||
| A2C3833230033 | GREEN | 0-80psi | 65263 100 0x22 | ||
| A2C3833190033 | GREEN | 0-80psi | 65263 100 0x22 | ||
| A2C3833170034 | BLUE | 0-10bar | 65263 100 0x22 | ||
| A2C3832690034 | BLUE | 0-10bar | 65263 100 0x22 | ||
| A2C3833240034 | BLUE | 0 -150 psi | 65263 100 0x22 | ||
| A2C3833300034 | BLUE | 0-150psi | 65263 100 0x22 | ||
| A2C3832700034 | BLUE | 0-150psi | 65263 100 0x22 | ||
| A2C3833160034 | BLUE | 0-5bar | 65263 100 0x22 | ||
| A2C3833230034 | BLUE | 0-80psi | 65263 100 0x22 | ||
| A2C3833190034 | BLUE | 0-80psi | 65263 100 0x22 |
| Individually packag: | including one meter plus nuts, installation and safety instructions. |
| Large package: | including 10 pieces 80mm/100 mm gauges or 25 pieces 52 mm gauges. |
| After-sales package: | All parts needed for installation packaged by bubble bag: meter, connector cable (8-pin for 52mm meter, 8+12-pin for 80mm/100 mm meter), installation and safety instructions. |
Product Details:
| Input Type: | CAN J1939 input only |
| Voltage: | 12/24V |
| Glass: | Anti-fog and anti-reflective glass |
| Material: | Plastic,Mineral Glass (outer lens)Plastic (inner lens) |
| Protection level: | IP 67 |
| Working temperature: | -40°C to +80°C |
