VDO 2bar Pressure Gauge Black 52Mm 2 1/16in A2C3833490001/A2C3833040001
VDO 2bar Pressure Gauge Black 52Mm 2 1/16in A2C3833490001
VDO 2bar Pressure Gauge Black 52Mm 2 1/16in A2C3833490001/A2C3833040001
Part NO. : A2C3833490001/A2C3833040001
Temperature Range: -40°C to +80°C
Brand: VDO
Quality: Genuine Quality

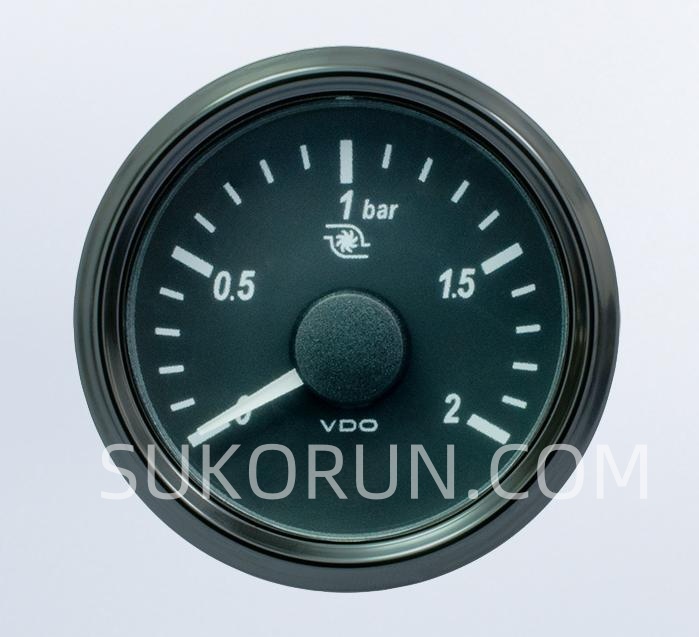

VDO SingleViu 2bar Pressure Gauge Black 52Mm 2 1/16in A2C3833490001
OTHER PART NUMBER:
| Individually package | Large package (10 pieces) | After-sales package | Backlight color | Rang(unit) | CAN |
| A2C3833490001 | A2C3833490025 | A2C3833490030 | WHITE | 0 -2bar | 65270 102 0x24 |
| A2C3833470001 | A2C3833470025 | A2C3833470030 | WHITE | 0-60psi | 65270 102 0x24 |
| A2C3833490031 | AMBER | 0 -2bar | 65270 102 0x24 | ||
| A2C3833470031 | AMBER | 0-60psi | 65270 102 0x24 | ||
| A2C3833490032 | RED | 0 -2bar | 65270 102 0x24 | ||
| A2C3833470032 | RED | 0-60psi | 65270 102 0x24 | ||
| A2C3833490033 | GREEN | 0 -2bar | 65270 102 0x24 | ||
| A2C3833470033 | GREEN | 0-60psi | 65270 102 0x24 | ||
| A2C3833490034 | BLUE | 0 -2bar | 65270 102 0x24 | ||
| A2C3833470034 | BLUE | 0-60psi | 65270 102 0x24 |
OTHER PRODUCT:

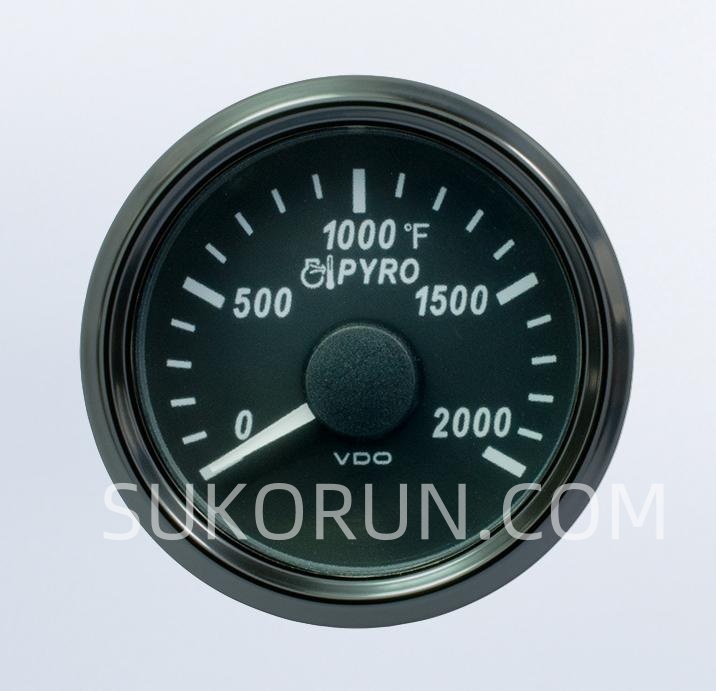

VDO SingleViu 2000°F Exhaust Gas Temperature Gauge Black 52Mm 2 1/16in A2C3833040001
| Individually package | Large package (10 pieces) | After-sales package | Backlight color | Rang(unit) | CAN |
| A2C3833040001 | A2C3833040025 | A2C3833040030 | WHITE | 0-1000°C | 65270 173 0x30 |
| A2C3833050001 | A2C3833050025 | A2C3833050030 | WHITE | 0-2000°C | 65270 173 0x30 |
| A2C3833040031 | AMBER | 0-1000°C | 65270 173 0x30 | ||
| A2C3833050031 | AMBER | 0-2000°C | 65270 173 0x30 | ||
| A2C3833040032 | RED | 0-1000°C | 65270 173 0x30 | ||
| A2C3833050032 | RED | 0-2000°C | 65270 173 0x30 | ||
| A2C3833040033 | GREEN | 0-1000°C | 65270 173 0x30 | ||
| A2C3833050033 | GREEN | 0-2000°C | 65270 173 0x30 | ||
| A2C3833040034 | BLUE | 0-1000°C | 65270 173 0x30 | ||
| A2C3833050034 | BLUE | 0-2000°C | 65270 173 0x30 |
OTHER PRODUCT:

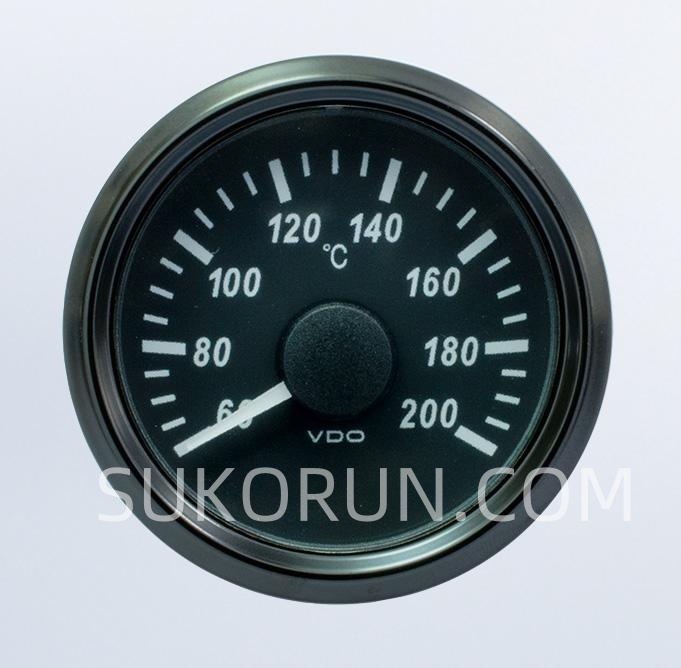

VDO SingleViu 200°C Cylinder Temperature Gauge Black 52Mm 2 1/16in A2C3833520001
| Individually package | Large package (10 pieces) | After-sales package | Backlight color | Rang(unit) | CAN |
| A2C3833520001 | A2C3833520025 | WHITE | 60-200°C | n.d. | |
| A2C3833530001 | A2C3833530025 | WHITE | 150-400°C | n.d. | |
| A2C3833520031 | AMBER | 60-200°C | n.d. | ||
| A2C3833530031 | AMBER | 150-400°C | n.d. | ||
| A2C3833520032 | RED | 60-200°C | n.d. | ||
| A2C3833530032 | RED | 150-400°C | n.d. | ||
| A2C3833520033 | GREEN | 60-200°C | n.d. | ||
| A2C3833530033 | GREEN | 150-400°C | n.d. | ||
| A2C3833520034 | BLUE | 60-200°C | n.d. | ||
| A2C3833530034 | BLUE | 150-400°C | n.d. |
| Individually packag: | including one meter plus nuts, installation and safety instructions. |
| Large package: | including 10 pieces 80mm/100 mm gauges or 25 pieces 52 mm gauges. |
| After-sales package: | All parts needed for installation packaged by bubble bag: meter, connector cable (8-pin for 52mm meter, 8+12-pin for 80mm/100 mm meter), installation and safety instructions. |
Product Details:
| Input Type: | CAN J1939 input only |
| Voltage: | 12/24V |
| Glass: | Anti-fog and anti-reflective glass |
| Material: | Plastic,Mineral Glass (outer lens)Plastic (inner lens) |
| Protection level: | IP 67 |
| Working temperature: | -40°C to +80°C |
